Compact. Powerful. Purpose-Built. Take a look at this custom lubrication skid engineered by the Anderson Process team. The skid features: • Tuthill (Ingersoll Rand) gear pump • Airex air-cooled heat exchanger • PowerGuard spin-on filter • Welded carbon steel SCH40 interconnection piping • Compact, painted carbon steel base Every component is selected and assembled to […]
Check out these Cornell solids handling pump assemblies engineered and assembled by the Anderson Process team. Each unit features a rugged Cornell pump coupled to a WEG motor, mounted on a powder-coated carbon steel base plate. Designed for durability and performance in demanding applications, these assemblies are ready to handle the toughest jobs in fluid […]
Check out this beast of a build from the Anderson Process team! This custom skid features a Cornell solids-handling pump with: 🔹 12” suction 🔹 10” discharge 🔹 22” impeller The pump was mounted on a powder-coated C-channel base and is belt-driven by a 350 HP WEG motor with an in-house fabricated belt guard. Engineered […]
Every custom-built system has to start somewhere. A walk through our Michigan facility gives you a behind-the-scenes look at the fabrication, sub-components, and assemblies that go into creating fully functional, automated systems capable of handling multiple tasks and mediums. With our in-house fabrication shop, deep inventory, and engineering know-how, we’re equipped to take on just […]
No request is too small when it comes to meeting our customers’ needs. This customer asked for powder coated ferrules on their hose assembly, and we were happy to make it happen! Our attention to detail and commitment to custom solutions is what sets us apart.
For this project, we integrated a Variable Frequency Drive (VFD) to enhance the performance of a Watson-Marlow MasoSine Pump, which is coupled to a Nord Gear Motor and mounted on a fabricated stainless steel cart. While we didn’t fabricate the cart or assemble the pump/motor, our role was crucial in bringing precision speed control to […]
Engineered for Excellence! Here’s a sneak peek at one of our latest skids: featuring a Mouvex eccentric disc pump with a heating jacket, coupled to a Nord gear reducer and a Weg motor, all mounted on a painted carbon steel base plate. Why Mouvex Eccentric Disc Seal-Less Pumps? 🔹 Seal-Less Design – No magnets, packing, […]
Neptune Metering Skid: Built for Precision This skid, crafted for an industrial equipment manufacturer, is packed with top-tier components for reliable performance: 🔹 (2) Neptune metering pumps 🔹 Calibration column 🔹 (2) Pressure relief valves 🔹 Back pressure valve 🔹 Pulsation dampener Everything is connected using SCH80 PVC piping and mounted on a durable polypropylene […]
We created this setup for a construction company, featuring a Wilden 1” Pro-Flo Shift AODD pump with an RTI filter and regulator, mounted on a durable powder-coated carbon steel cart with casters for easy mobility. Why the Wilden Pro-Flo Shift Stands Out: 🔹 Shear-sensitive and dry-run capable 🔹 Superior flow rates 🔹 Anti-freezing & efficient […]
This is a custom-built skid for a mechanical contractor. It features a Pioneer self-priming pump, paired with a reliable Weg motor, all mounted on a painted carbon steel frame with leveling feet for maximum stability. Here’s the pump breakdown: 🔹 Ductile Iron, Self-Priming Centrifugal Pump 🔹 3” suction & 3” discharge Companion Flange connections 🔹 […]
Throwback meets innovation! We upgraded a lubrication skid design originally built by Anderson Process for Allis Chalmers back in the 70s. This modernized skid supplies lube oil to a large bearing in concrete production equipment. The system features: 🔹 Haight internal gear pump 🔹 Dynex high-pressure pump 🔹 Dual Donaldson Hy-Pro filter housings All mounted […]
Check out this custom pump skid we built for a valued customer! It features a Griswold 10×8-13 pump paired with a 75 HP Weg motor, all mounted on a sturdy, painted carbon steel C-channel base plate that we fabricated in-house.
Whether it’s pumping, suction, or discharge, we’re busy building high-quality assemblies every day. Here’s a peek at part of a recent order, which includes a variety of hoses like: 🔹 Water suction hose 🔹 Water discharge hose 🔹 Jackhammer hose 🔹 Air/multipurpose hose 🔹 Contractor-grade garden hose 🔹 LP gas hose The hoses pictured are […]
Exciting project update! We’re currently building multiple skids featuring Liquiflo External Gear Pumps for an assembly plant. These pumps will be used for pumping oil formulations. The Liquiflo H-Series and 3-Series pumps are available in 316 Stainless Steel and Alloy-C, with both sealed and mag-drive options. With flow rates up to 55 GPM and discharge […]
We recently partnered with a research and design company to deliver a comprehensive solution for their fluid handling needs. Our team provided them with: 2 Liquiflo H-Series Stainless Steel Gear Pumps that feature ¾” inlet and discharge with a max flow rate of 10.7 gpm and a discharge pressure of 225 psi. ABB Baldor 1 […]
The Ansimag KM Series Sealless Mag Drive ETFE Lined Pump is ideal for the most corrosive or acidic applications in the chemical and steel industries. With 3 sizes available, the KM Series can produce flows up to 147 gpm and up to 140 feet of head. This close-coupled design allows for alignment-free installation, easy service and […]
When a customer approached us looking for a robust industrial solution for a portable tank transfer pump, we selected a Liquiflo Centry Series centrifugal pump to replace a competitor’s sanitary centrifugal pump. The Liquiflo Centry pump was built out of 316 stainless steel, featuring a 2″ inlet x 1.5″ discharge and powered by a 3-hp WEG […]
Along with our partner Roto Ultra, we were able to meet a few special color and paint specs for a customer. This Ohio State University-inspired polymer metering pump was constructed out of stainless steel and using Viton elastomers. This particular pump was designed to pump polymer at around 2 gpm and 40 psi. A right-angle […]
We are in the process of building a tank-cleaning cart for a customer who needs to flush oil out of their tanks. The finished cart will include Gusher and Wilden pumps, but the system also needs a custom tank-cleaning lance which will have a spray ball attached to the end. We built the 16”-long tank-cleaning […]
For any rotating or reciprocating piece of equipment, the foundation is key to its longevity. Whether it is on a base or cart, securing the equipment helps prevent damage from unwanted movement and vibration. We secured this Ampco C-Series 3″ x 2″ stainless-steel pump, powered by a 20 hp WEG motor, to a double-bent carbon-steel […]
We built this unique cart for a Continental Pump progressive cavity pump out of carbon steel, which we painted with epoxy and mounted on 8″ rubber wheels. The pump is constructed of stainless steel, powered by a 2 hp WEG motor, with a Viton stator and coupled to a Nord Gearbox. It provides 20 gpm at 50 psi of slurry. Additional […]
This is a unique railcar-to-truck unloading system with Benko Products Fall Protection. The trailer mount is portable and can be moved along uneven terrain, which makes it practical for this type of unloading. The Blackmer MAGNES Seal-less 3″ vane pump, powered by a WEG motor and driven by a NORD Gear Reducer, can fill methanol (120 […]
We built this pressure control skid featuring a Goulds Water Technology NPE pump, Aquavar variable speed pump controller, a HydroPro surge tank and Dixon Valve ball valves. Built to control and pump water at consistent pressure, the skid is mounted on painted carbon steel C-Channel base plate with lifting lugs and piped with SCH40 pipe.
This compressor skid has a Mouvex Pump compressor coupled to a NORD gearbox driven by a Honda gas engine. The skid will mount on tanker trailers to compress the tanker and push the product off the trailer. Normally these compressors are mounted on the trucks and PTO driven, but mounting them on the trailer provides […]
We built multiple sprinkler stands that will be used at a loading/unloading terminal that handles a multitude of different materials (limestone, taconite, etc.). The stands will be used with Nelson Irrigation Corporation Big Gun sprinklers, which will deliver 350 GPM in a 400’ diameter circle – or partial circle, if needed. The application will also […]
This filter skid featured a Xylem (Goulds Water Technology) NPE pump, FTI filter housing using AJR high-capacity oil absorbing micro-fiber filter media, and Dixon ball valves. Made for a Truck Accessory Manufacturer, we mounted the pump and filter on a stainless-steel double bend base and connected the two using welded SCH40 stainless steel piping. The […]
Check out this handsome duplex self-priming pump station we put together for a good customer. The assembly features (2) Cornell Pumps with Redi-prime chambers. The skid also includes Proco expansion joints, Dixon butterfly valves, IFM pressure transducers and a control panel built at our Michigan branch. Anderson Process assesses your fluid application needs and collaborates […]
This heavy-duty Cornell pump skid was designed for a well-known aggregate producer. The customer needed to extract water from a pond and deliver that water to their wash plant, so that they can wash aggregate. The aggregate being washed with 50 PSI spray bars that were over 70’ in the air. They needed the pump […]

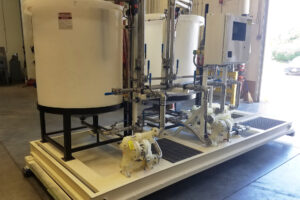

Designed for a mixer manufacturer, this metering skid was built by Anderson Process to meter different additive liquids to cement during the mixing process. The skid was constructed using (3) poly tanks, (1) Liquiflo gear pump, (2) Viking gear pumps and Dixon and Jomar actuated 3-way valves. Anderson Process not only designs and builds metering […]
Pictured is a duplex pump skid that was designed for pumping fuel oil at a hospital. The assembly consisted of (2) Tuthill (Ingersoll Rand) gear pumps, Fulflo relief valves, Dixon valves and a Titan duplex basket strainer. All the components are mounted on a painted carbon steel base with spill containment and piped in carbon […]

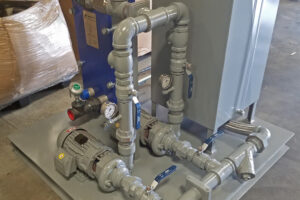

Pictured below is a cooling skid designed for an orthopedic product manufacturer who makes artificial replacement parts for the human body. The customer needed a way to keep the air compressors and air dryer used in their production process from overheating. Our solution was a system that utilizes a cooling tower. The system recirculates cool […]

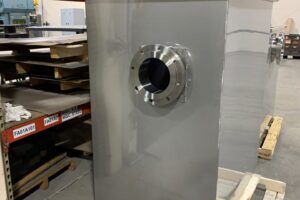

Our Michigan facility built several stainless-steel tanks to be used by an industrial laundry service company. They offer cleaning of tough, gritty materials such as oil absorbents, industrial towels, and floor mats that are used in various manufacturing facilities. They previously used polyethylene tanks in their facility to hold the materials used for their cleaning […]
Here is a custom skid our team built for a customer that specializes in sustainable packaging. The customer needed a way to control the temperature of oil in a tank for use in their manufacturing process. To accomplish this, our team custom-engineered a skid using an assortment of fluid handling components from some of our […]

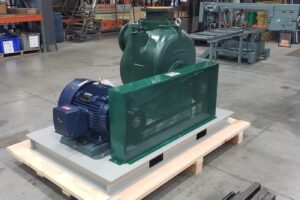

Several years ago the Anderson Process team custom engineered a pump skid for a gravel pit customer moving large amounts of aggregate. The pump consisted of a large Pioneer GS8 Pump Assembly designed for pumping water 2,000 GPM at 60 Feet of head. The self-priming, solids handling, centrifugal pump was put on a fabricated steel […]

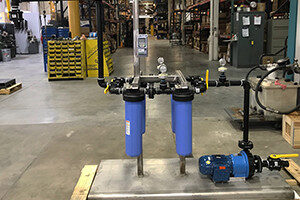

Custom carts and skids are one of our main areas of expertise. Often times, multiple permanent filtering solutions are not a financial or efficient reality for our customers. As a solution, mobile carts can be kitted with the proper equipment and used in multiple locations depending on which system has the need at any given […]
We just shipped out “5” Griswold ANSI pump packages for a local manufacturer that needed them to move cooling water in a foundry. These ANSI pumps included Flex-A-Seal mechanical seals and WEG motors put into a package on a painted base. This order included “4” 100HP motors and a 20HP motor. If you are in […]
This skid was designed with a T-Mag magnetic drive centrifugal sealless pump, WEG explosion proof motor, Pentair filters and housings and Dixon cam and groove fittings. Through this combination, the skid is now capable of pumping product through a 20 micron pre-filter and then the final .2 micron filter at 50 GPM. Every component was […]
Customer: Metal Manufacturer Need/Application: Customer was looking to install new equipment to speed up their manufacturing. Solution: Built a Xylem system that could take 120°F of water and cool it to 90°F at 40 GPM. The system included the following: 2 pumps (duplex pump with VFD controls, pressure switches and alternator), control panel, differential pressure switch, heat exchanger, […]

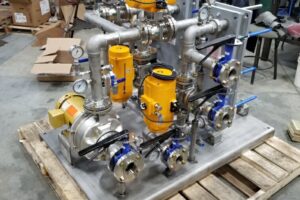

Customer: Machine Manufacturer Need/Application: Needed to batch and mix coating material at two different strengths and supply it to their production lines. Solution: This was made possible through the design of a two tank system with Wilden pumps to pump product from totes into tanks and from tanks to production lines. All of the piping, pumps and valves […]
Customer: Gearbox Manufacturer Need/Application: Customer wanted to meter pre-set amounts of oil into gearboxes from totes and have the system be fully portable. Solution: We made this possible by designing a custom skid that was made up of a Wilden pump, Blacoh pulsation dampeners, control panel with a Badger Meter batcher, meter, casters, hoses and a shut-off nozzle. The […]
