Brake Fluid Fill Adapters

Brake Fluid (DOT 3 and DOT 4, Clutch Fluid)

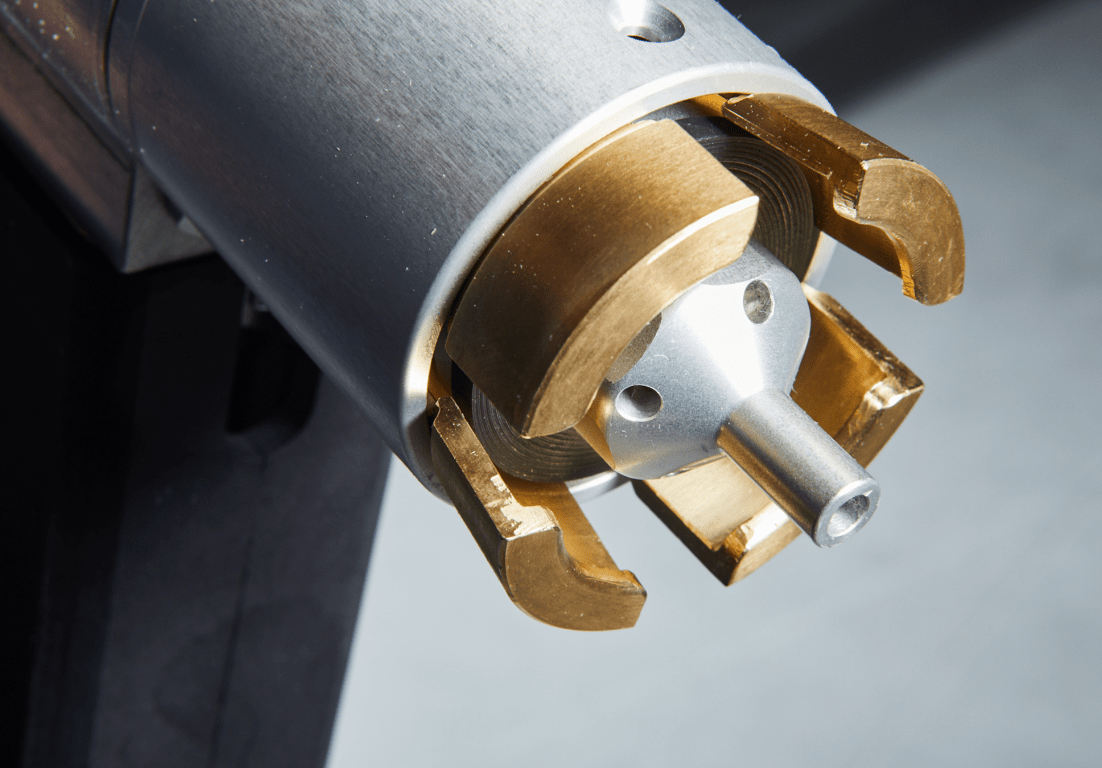

Brake Fluid Fill Adapter

We provide equipment for accurate and reliable filling of brake fluid, DOT 3 & DOT 4, or clutch fluid into vehicles reservoirs on the production line.  Our system capabilities include fully automated brake fluid fill tools for hands-off operation, pressure and vacuum leak testing, audio/visual signals for operators (LED lights, alarms, stack lights), and full integration and data communication to the customer’s Manufacturing Execution Systems (MES)

The operator starts by selecting a recipe – either by barcode scanner, MES, broadcast, or a push-button.  The operator then places the adapter tool onto the vehicle port.  The automated adapter clamps to the port and proceeds with its automated programming to fill the reservoir.

Our brake fluid adapter tools can use either pressure filling or volumetric filling:

Pressure Fill:

Step 1: Evac the vehicle for vacuum leak testing

Step 2: Fill the vehicle with brake fluid. Pressure leak test with the fluid

Step 3: Level Down to the target volume and detach the adapter tool

Volumetric Fill:

A volumetric fill bypasses the pressure testing stages and fills the vehicle with brake fluid to the desired fill line within +/- %5 accuracies.

All of our fluid fill adapter tools have automated clamping options and can be customized to meet unique customer requirements.  We also offer adapter maintenance services to make sure your new or legacy adapters are always operating within system requirements.

We Make Filling Adapters For:

Fluids traditionally handled on an automotive assembly line, including but not limited to:

AC Fluid Adapter Tools
Brake Fluid Adapter Tools
Coolant Adapter Tools
Diesel Exhaust Fluid Adapter Tools
Fuel Adapter Tools
Oil Adapter Tools
Power Steering Adapter Tools
Windshield Fluid Adapter Tools
Air Suspension Adapter Tools
Leak Testing Adapter Tools
Combination Adapter Tools
Specialized Adapter Tools
