Pulsafeeder

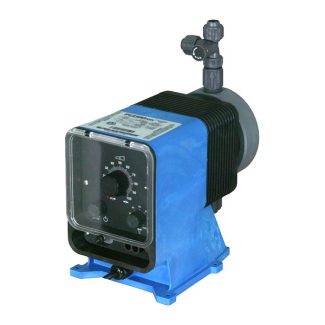

PULSAtron

The PULSAtron series pump is electric diaphragm metering pump powered by a fin cooled enclosed solenoid that dissipates heat to maintain pressure handling capabilities of the pump. The thermally protected solenoid protects the pump from seizing up in extreme heat conditions. An automatic reset feature allows the pump to restart after the pump cools down. Typical applications include water treatment, water conditioning, ware wash, and car washes.

• Flows up to 600 GPD
• Pressures up to 300 PSI
• Accuracy +/- 2% at max capacity on E Plus, HV and MP Series; +/- 3% at max capacity on A Plus, C, C Plus, and E Series

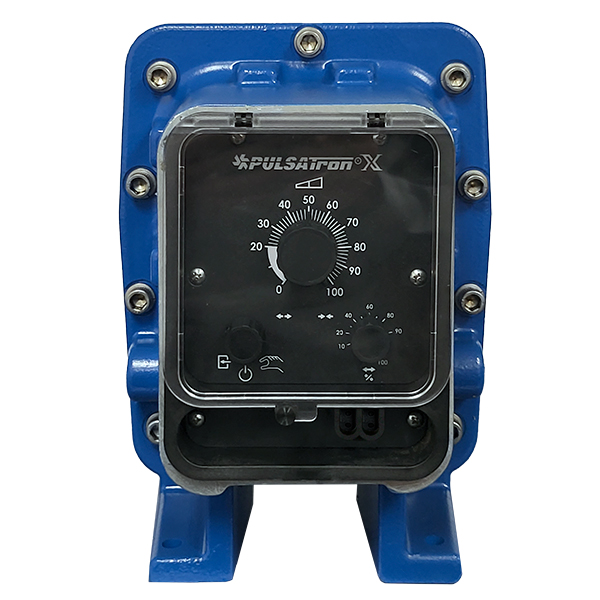

Pulsatron Series X

The Pulsatron X Explosion Proof pump delivers all the essential features you expect from a high-performance chemical metering pump. It ensures reliable operation, exceptional performance, and is engineered for maximum safety. With hazardous location certifications, the X Series guarantees safety for everyone in its vicinity. Its design provides remarkable durability to withstand internal explosions, allowing for accurate and secure chemical metering. The Pulsatron X is the ideal solution for both the harshest environments and the most precise tasks, offering metering accuracy within +/- 2% of its maximum capacity.

• Flows: 31 – 600 GPD (4.9 – 94.6 LPH) 1.3 – 25 GPH
• Pressure: 30 – 300 PSI (2 – 21 BAR)
• Accuracy: +/- 2% of its maximum capacity

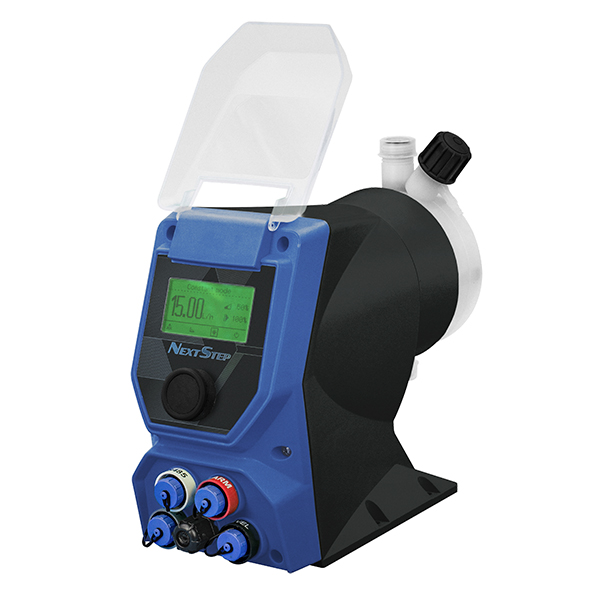

NextStep Metering Pumps

NextStep stepper motor metering pumps offer precise and reliable chemical distribution for various applications. The microprocessor-driven stepper motor, with a 4800:1 resolution, ensures accurate dosing with minimal pulsation. The pumps provide control over metering output, with capacity and suction stroke adjustments from 100% to 0.1% and 100% to 30%, ideal for handling off-gassing and viscous chemicals. This reduces the need for external devices like mixers and dampeners.

The intuitive interface includes a dial knob and a large, multi-color backlit display for easy monitoring of pump status and flow rate adjustments in GPH, LPH, and %. Advanced programming options and remote communication features ensure smooth operation in complex applications. A five-year warranty covering both the diaphragm and communications ensures long-term reliability and performance.

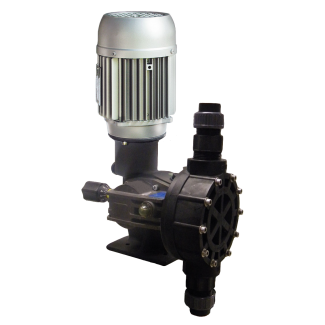

Blackline Series

The Blackline Series MD is a motor driven, spring return mechanical diaphragm metering pump for precise and accurate metering control. Standard features include oil lubricated ball bearings in a die-cast aluminum housing, long life reinforced PTFE diaphragm, micrometer style stroke length adjuster (10:1 turndown or up to 100:1 with VFD) and many liquid end material options for any application.

• Flows up to 132 GPH
• Pressures up to 150 PSIG
• Viscosities up to 1,000 cPs
• Accuracy up to +/- 2% at max capacity

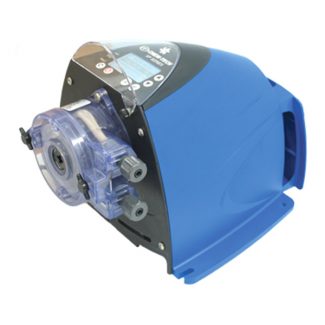

CHEM-TECH Series

The CHEM-TECH series pump family has peristaltic and mechanical diaphragm metering pumps. Typical applications include car washes, water conditioning, water treatment, and ware wash. Materials are available for pumping sodium hypochlorite (bleach).

• Flows up to 120 GPD
• Pressures up to 150 PSI

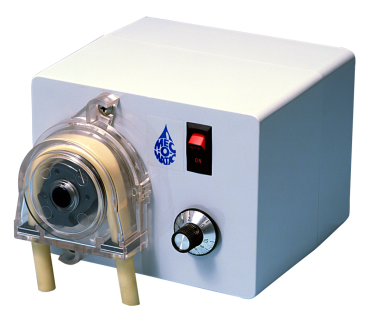

MEC-O-MATIC

The MEC-O-MATIC series pump family has peristaltic and mechanical diaphragm metering pumps with the ability to handle many chemical and slurry applications. The pump case has a rugged design to protect it from chemicals, temperature and impedance. The gear parts are heat treated metal parts and the output shaft has heavy duty bearings. Common applications include feeding chemicals, detergents, liquid enzymes, and fragrances to slurry and difficult drain/grease cleaning situations.

• Flows up to 97 GDP
• Pressures up to 25 PSI

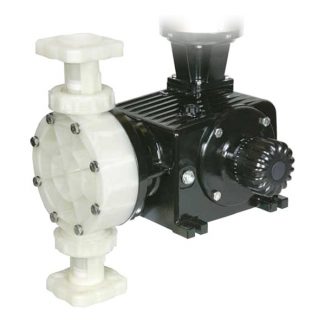

OMNI Series

The OMNI Series diaphragm metering pumps are designed to be economical, rugged, simple, and reliable. They can handle applications with acids, caustics, bleaches, solvents, catalysts and many more. The completely non-vented gearbox design on the DC7 model prevents condensation and ingress of water and other contaminants providing excellent durability and protection from the harshest environments.

• Flows up to 951 GPH
• Pressures up to 150 PSI
• Temperatures up to 150° F
• Viscosities up to 1,000 cPs

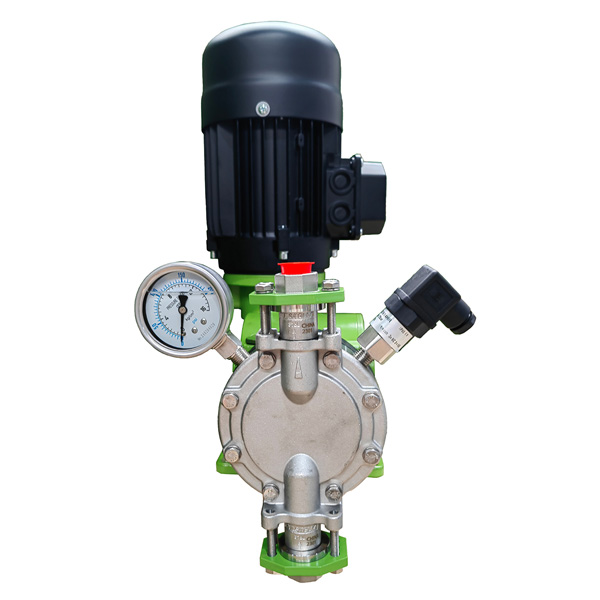

GreenLine Metering Pump

The GreenLine (GLM) mechanically actuated diaphragm metering pump offers reliability, robustness, and efficiency in a compact design, ideal for a wide range of chemical transfer and dosing applications. It features a double-sided PTFE-faced, multi-layer diaphragm for long life and maximum chemical resistance, with additional sealing technology to prevent leaks and chemical spray. The pump includes a self-contained double barrier check valve assembly, spherically uniform velocity check valves for superior solids handling, and O-ring valve seats that improve priming and reduce noise.

The GreenLine’s compact gearbox design is space-saving and features oversized, shielded bearings for long-lasting performance. Its non-metallic, never-seize motor coupling allows for easy motor installation and removal, while the stroke adjustment has an auto-locking mechanism for secure, worry-free operation. Additional features include a motor flange drain path to prevent pooling, solid mounting feet for stability, and a fully sealed, non-vented design to protect against contaminants. These features combine for a high-performance pump with low ownership costs and minimal maintenance requirements.

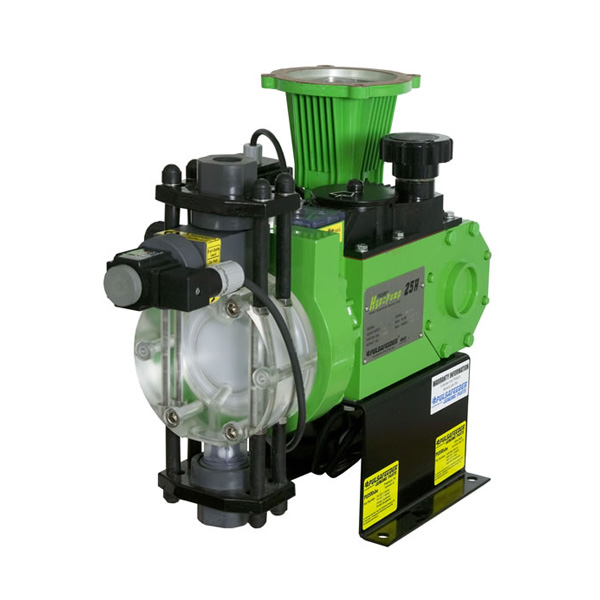

PULSAR Series

The PULSAR metering pumps are chemical feed pumps that deliver long-term value and outstanding performance. They are available in 3 types, the Pulsar, Shadow, and HypoPump, which can be combined into multiplex units. The diaphragms can be either hydraulically or mechanically actuated. The hydraulically balanced diaphragm maximizes pump life and pressure capabilities, does no work, and has optimal accuracy and performance. The mechanically actuated pump eliminates the need for hydraulic fluid simplifying commissioning and maintenance, while minimizing power requirements at an economical price.

• Flows up to 170 GPH
• Pressures up to 4,000 PSI
• Temperatures up to 230° F
• Viscosities up to 3,000 cPs (higher options available)

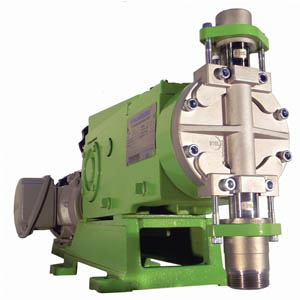

PULSA Series

The PULSA series positive displacement, reciprocating metering pump is a rugged long lasting pump and is a favorite among customers. The PULSA series combines the efficiency of a plunger pump with the seal integrity of a diaphragm pump to eliminate leaks. A wide variety of materials are available to handle most chemicals in for your application. PULSA pumps are typically used in acidic, caustic, pH control, dye/ink, bleaches and many other applications. Available in various configurations diaphragm options such as: the durable flat diaphragm prevents over deflection; the hyrdratube handles high viscosity slurries; the hydracone suits high-lift, high viscosities and low density conditions.

• Flows up to 3,318 GPH
• Pressures up to 5,000 PSI
• Viscosities up to 5,000 cPs
• Accuracy +/- 1% rating

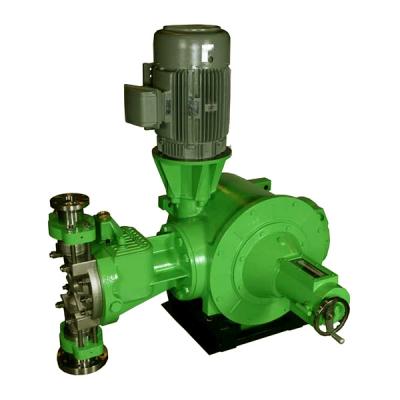

PULSA Pro Series

The PULSA Pro series is designed to produce high flows with high pressures with accuracy and reliability. The modular design allows for simple, duplex, triplex and quadraplex space saving arrangements with either vertical or horizontal motors. The PULSA Pro is resistant to pipe stress and promotes leak free operation; all while making check valves quickly removable without having to disconnect piping. These pumps comply with API 675, CE, ATEX, NORSOK, NACE, and GOST standards.

• Flows up to 16,380 GPH
• Pressures up to 7,252 PSI
• Accuracy to +/- 0.5%
• Viscosities up to 3,000 cPs (higher options available)
