Filter Technology Inc. (FTI) is a manufacturer of high quality liquid bag and cartridge element housings.  These housings are available in carbon, aluminum, 304 and 316 stainless steel. Additionally, FTI manufacturers felt, mesh, Nomex, oil-absorbent, specialty, and dust collection bags. The bags are available in multiple sizes and with varying ring-type seals.

Visit FTI’s Website

Model #4-6 (Size #3) and #4-12 (Size #4) Bag Housings

Model #4-6 (Size #3) and #4-12 (Size #4) Bag Housings

Housing materials are available in carbon, aluminum and stainless steel.  Connection types include NPT or Flange connections ranging from 3/4″ to 2″.

Model #4-6 Flow Rates: Up to 35 GPM
-Accepts industry size #3 bag element (4” diameter x 9” length)

Model #4-12 Flow Rates: Up to 50 GPM
-Accepts industry size #3 bag element (4” diameter x 14” length)

Filter Technology Model 4 Chart

Filter Technology how to order Model 4 Diagram

MODEL #8-15 (Size #1) and #8-30 (Size #2) Bag Housings

MODEL #8-15 (Size #1) and #8-30 (Size #2) Bag Housings

Housing materials are available in carbon, aluminum and stainless steel.  Connection types include NPT or Flange connections ranging from 1″ to 3″.

Model #8-15 Flow Rates:  Up to 100 GPM
-Accepts industry size #1 bag element (7” diameter x 16” length)

Model #8-30 Flow Rates:  Up to 200 GPM
-Accepts industry size #2 bag element (7” diameter x 32” length)

Filter Technology Model 8 sizes 1 and 2

Filter Technology Model 8 Chart

Model #D-815 (Size #1) and #D-830 (Size #2) Duplex Bag Housing

Model #D-815 (Size #1) and #D-830 (Size #2) Duplex Bag Housing

Duplex filters permit continuous operation while reducing overall operating costs.  Flow can be diverted between two filter vessels allowing one side to be serviced while other is in use.  Housing materials are available in carbon, aluminum and stainless steel.  Connection types include NPT or Flange connections ranging from 1″ to 3″.

Model #D8-15 Flow Rates:  Up to 100 GPM
-Accepts industry size #1 bag element (7” diameter x 16” length)

Model #D8-30 Flow Rates:  Up to 200 GPM
-Accepts industry size #2 bag element (7” diameter x 32” length)

Filter Technology Model D8 Info

Model #8815 (Size #1) and #8830 (Size #2) Dual Capacity Bag Housing

Model #8815 (Size #1) and #8830 (Size #2) Dual Capacity Bag Housing

Dual capacity filters allow for continuous and simultaneous flow through two vessels.  This allows for higher flows through a common manifold and will increase dirt holding capacity and filter bag life.  Housing materials are available in carbon, aluminum and stainless steel.  Connection types include NPT or Flange connections ranging from 1″ to 3″.

Model #88-15 Flow Rates:  Up to 200 GPM
-Accepts industry size #1 bag element (7” diameter x 16” length)

Model #88-30 Flow Rates:  Up to 400 GPM
-Accepts industry size #2 bag element (7” diameter x 32” length)

Filter Technology Model 88 info

Replacement Liquid Bag Filter Elements

Replacement Liquid Bag Filter Elements

FTI manufactures filter bags for their filter vessels along with those to fit all competitive bag filter housings. They also manufacturer tie-on bags and custom bag filter media for a number of batch and continuous process applications.

Common filter bag media offered include polyester felt, polypropylene felt, Nomex felt, nylon mesh, polyester mesh, and polypropylene and polyester microfibre materials. Industry standard sizes, ring collars, and micron retention sizes are available as needed.

Application variables such as flow rate, product viscosity, temperature, material compatibility, system pressures, etc. will determine proper selection of bag material and size.

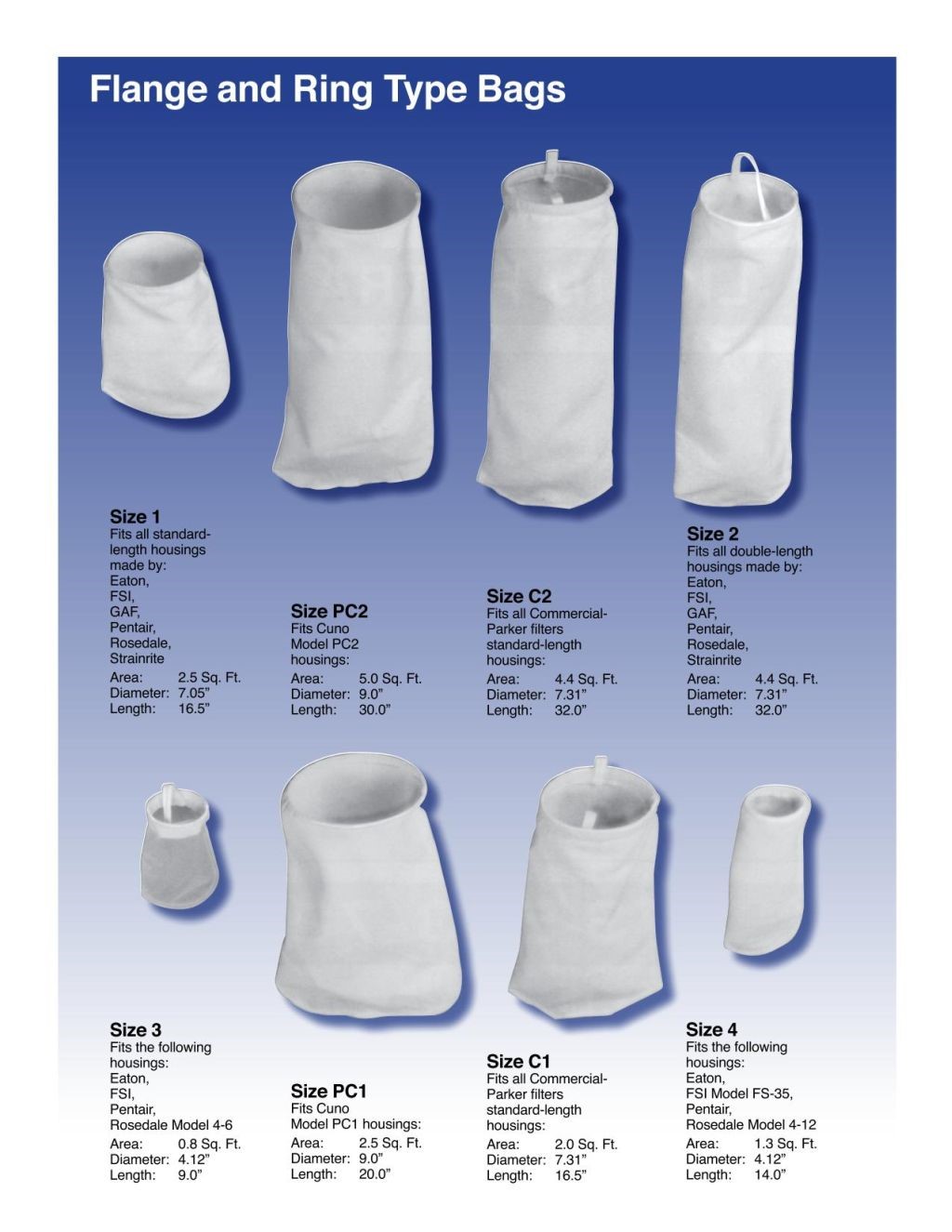

Filter Technology Flange and Ring Type Bags 1

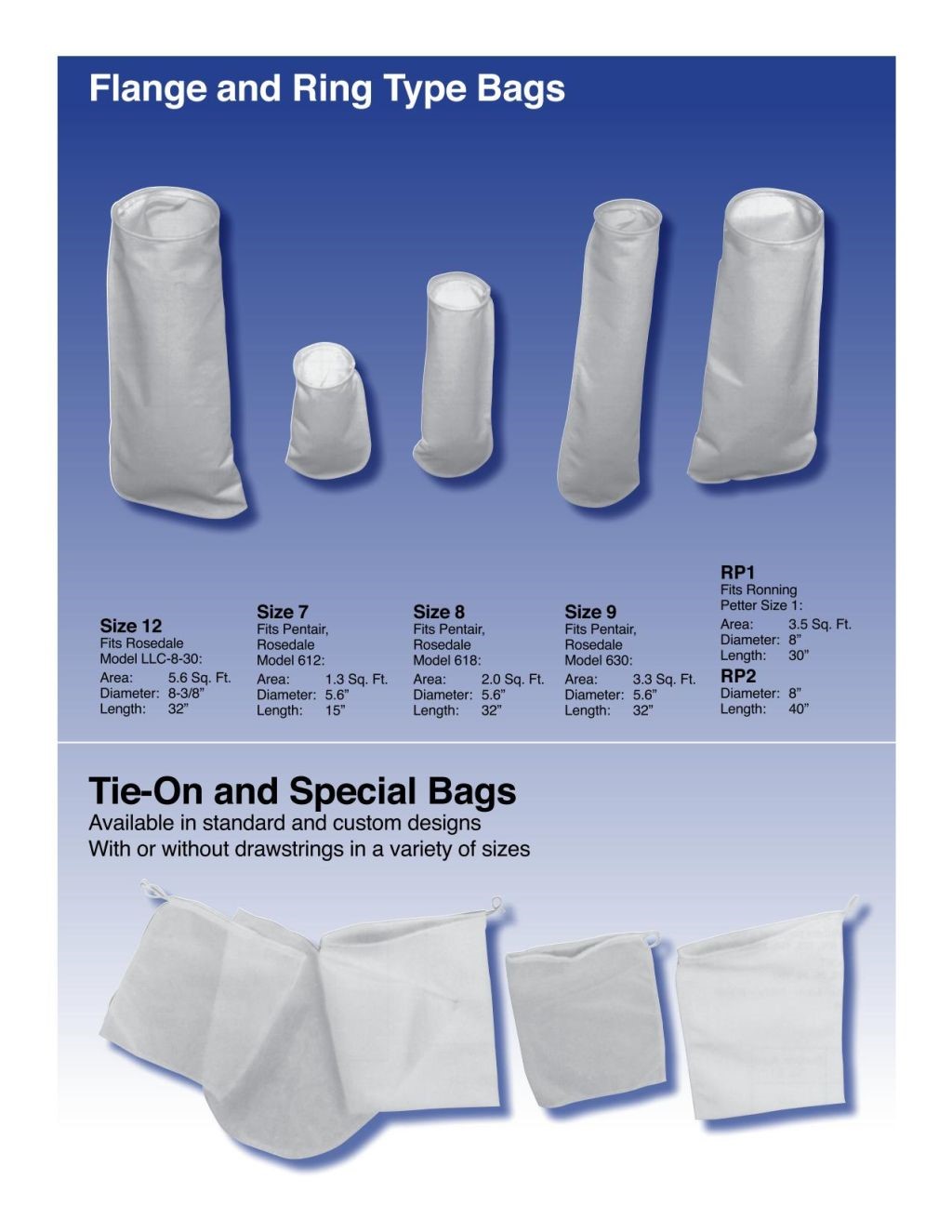

Filter Technology Flange and Ring Type Bags 2

Filter Technology How to order filter bags

Replacement Dust Collection Bag Filter Elements

Replacement Dust Collection Bag Filter Elements

FTI manufactures dust collection filter bags for OEM Dust Collection vessels. As a custom manufacturer, FTI can also produce custom sizes and configurations.

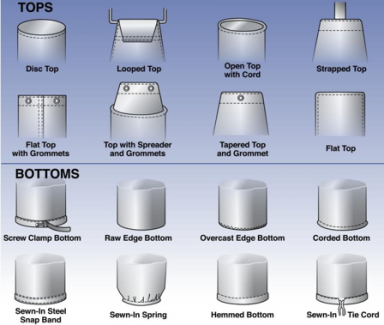

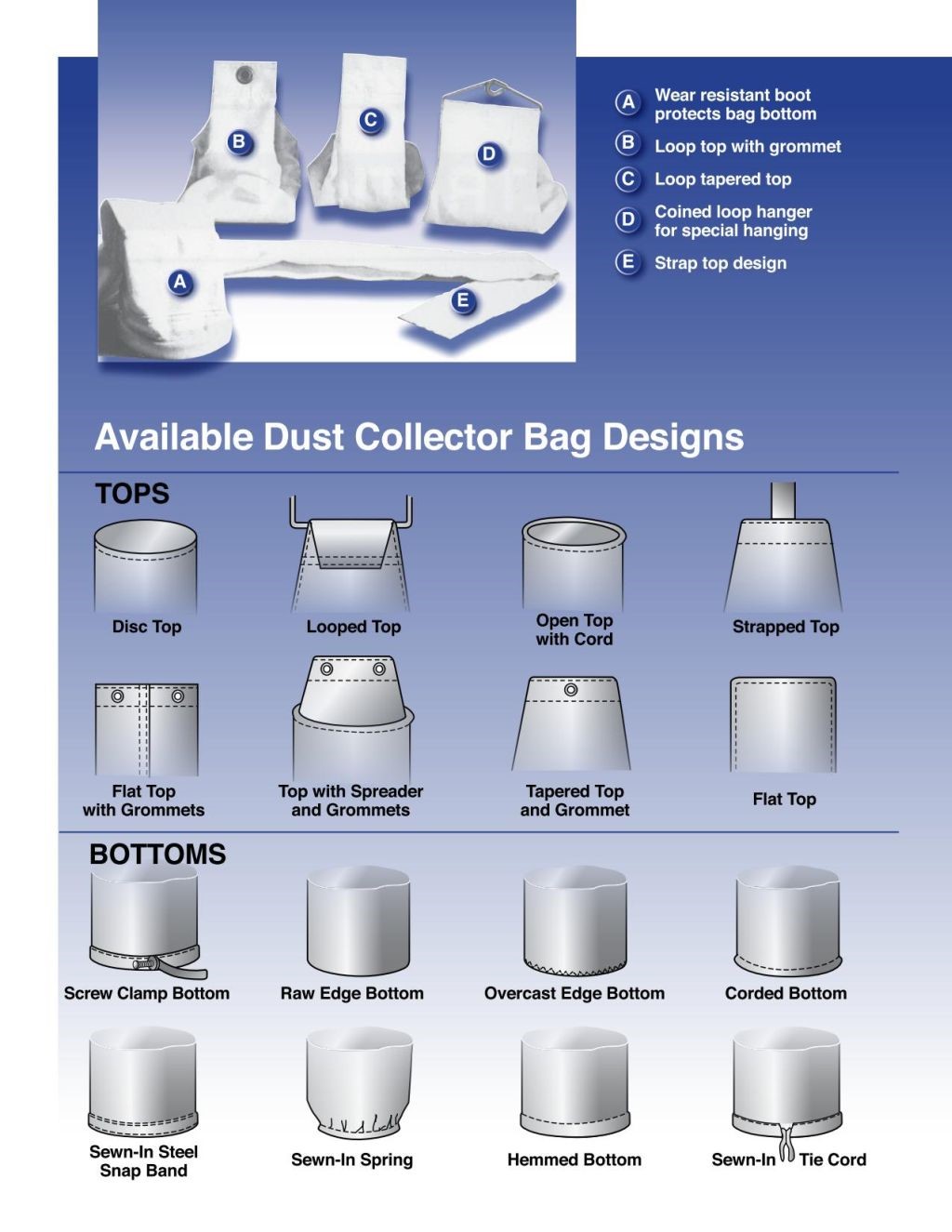

Filter Technology Dust Collector Bag Designs

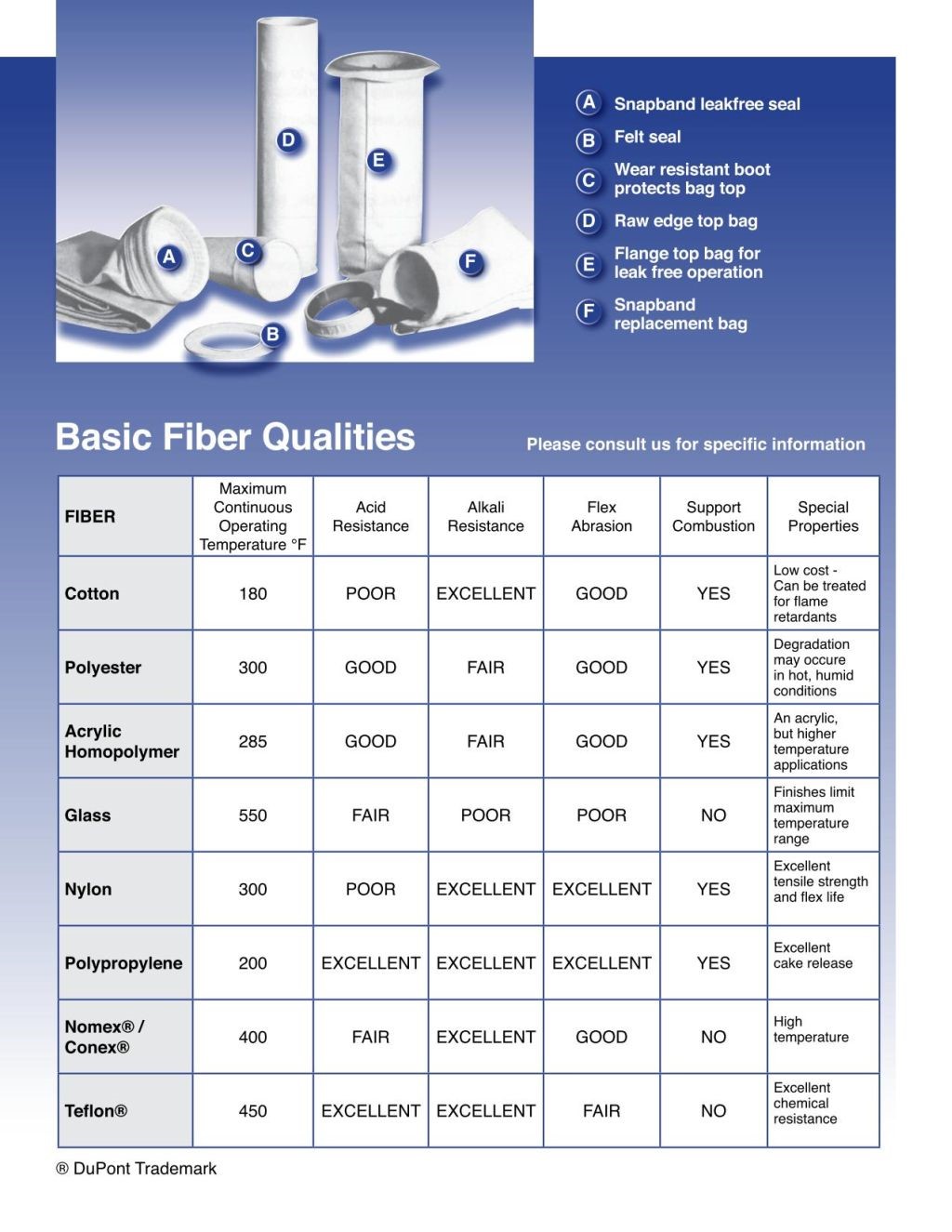

Filter Technology Basic Fiber Qualities

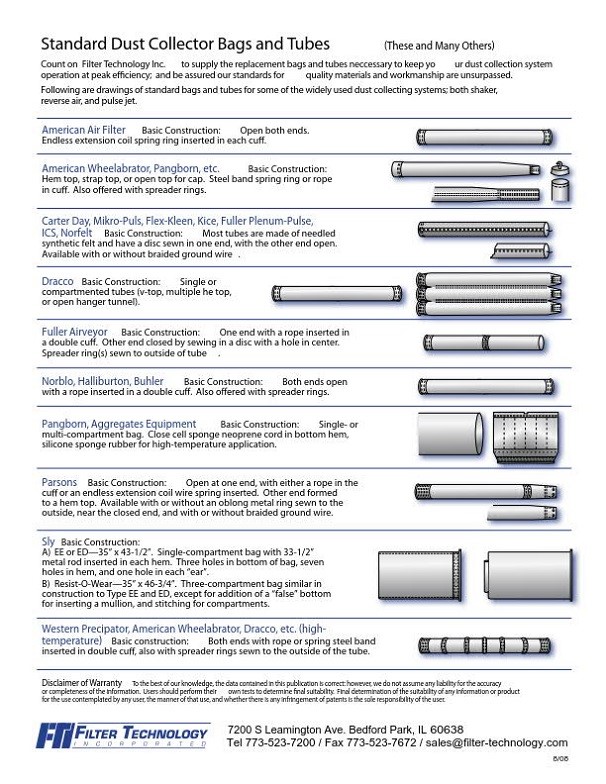

Filter Technology Standard dust collector bags and tubes

Model #4-6 (Size #3) and #4-12 (Size #4) Bag Housings

Model #4-6 (Size #3) and #4-12 (Size #4) Bag Housings

Housing materials are available in carbon, aluminum and stainless steel.  Connection types include NPT or Flange connections ranging from 3/4″ to 2″.

Model #4-6 Flow Rates: Up to 35 GPM
-Accepts industry size #3 bag element (4” diameter x 9” length)

Model #4-12 Flow Rates: Up to 50 GPM
-Accepts industry size #3 bag element (4” diameter x 14” length)


Request a Quote

Filter Technology Model 4 Chart

Filter Technology how to order Model 4 Diagram

MODEL #8-15 (Size #1) and #8-30 (Size #2) Bag Housings

MODEL #8-15 (Size #1) and #8-30 (Size #2) Bag Housings

Housing materials are available in carbon, aluminum and stainless steel.  Connection types include NPT or Flange connections ranging from 1″ to 3″.

Model #8-15 Flow Rates:  Up to 100 GPM
-Accepts industry size #1 bag element (7” diameter x 16” length)

Model #8-30 Flow Rates:  Up to 200 GPM
-Accepts industry size #2 bag element (7” diameter x 32” length)


Request a Quote

Filter Technology Model 8 sizes 1 and 2

Filter Technology Model 8 Chart

Model #D-815 (Size #1) and #D-830 (Size #2) Duplex Bag Housing

Model #D-815 (Size #1) and #D-830 (Size #2) Duplex Bag Housing

Duplex filters permit continuous operation while reducing overall operating costs.  Flow can be diverted between two filter vessels allowing one side to be serviced while other is in use.  Housing materials are available in carbon, aluminum and stainless steel.  Connection types include NPT or Flange connections ranging from 1″ to 3″.

Model #D8-15 Flow Rates:  Up to 100 GPM
-Accepts industry size #1 bag element (7” diameter x 16” length)

Model #D8-30 Flow Rates:  Up to 200 GPM
-Accepts industry size #2 bag element (7” diameter x 32” length)


Request a Quote

Filter Technology Model D8 Info

Model #8815 (Size #1) and #8830 (Size #2) Dual Capacity Bag Housing

Model #8815 (Size #1) and #8830 (Size #2) Dual Capacity Bag Housing

Dual capacity filters allow for continuous and simultaneous flow through two vessels.  This allows for higher flows through a common manifold and will increase dirt holding capacity and filter bag life.  Housing materials are available in carbon, aluminum and stainless steel.  Connection types include NPT or Flange connections ranging from 1″ to 3″.

Model #88-15 Flow Rates:  Up to 200 GPM
-Accepts industry size #1 bag element (7” diameter x 16” length)

Model #88-30 Flow Rates:  Up to 400 GPM
-Accepts industry size #2 bag element (7” diameter x 32” length)


Request a Quote

Filter Technology Model 88 info

Replacement Liquid Bag Filter Elements

Replacement Liquid Bag Filter Elements

FTI manufactures filter bags for their filter vessels along with those to fit all competitive bag filter housings. They also manufacturer tie-on bags and custom bag filter media for a number of batch and continuous process applications.

Common filter bag media offered include polyester felt, polypropylene felt, Nomex felt, nylon mesh, polyester mesh, and polypropylene and polyester microfibre materials. Industry standard sizes, ring collars, and micron retention sizes are available as needed.

Application variables such as flow rate, product viscosity, temperature, material compatibility, system pressures, etc. will determine proper selection of bag material and size.


Request a Quote
Download Brochure

Filter Technology Flange and Ring Type Bags 1

Filter Technology Flange and Ring Type Bags 2

Filter Technology How to order filter bags

Replacement Dust Collection Bag Filter Elements

Replacement Dust Collection Bag Filter Elements

FTI manufactures dust collection filter bags for OEM Dust Collection vessels. As a custom manufacturer, FTI can also produce custom sizes and configurations.


Request a Quote

Filter Technology Dust Collector Bag Designs

Filter Technology Basic Fiber Qualities

Filter Technology Standard dust collector bags and tubes

Filter Technology Inc. (FTI) is a manufacturer of high quality liquid bag and cartridge element housings.  These housings are available in carbon, aluminum, 304 and 316 stainless steel. Additionally, FTI manufacturers felt, mesh, Nomex, oil-absorbent, specialty, and dust collection bags. The bags are available in multiple sizes and with varying ring-type seals.
