All-Flo Pump Company

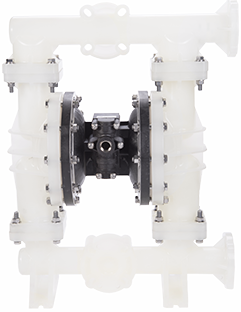

Plastic Air-Operated Double Diaphragm

All-Flo Plastic Air-Operated Double Diaphragm pumps are available in numerous different configurations, making them compatible with numerous different applications.  They are available with Polypropylene, Conductive Nylon or PVDF (Kynar) wetted materials in clamped and bolted styles.  The elastomers available include: Geolast®, Santoprene®, PTFE, and Viton.  Connection types include ANSI/DIN flanges, FNPT and FBSPT.

• Flows up to 211 GPM
• Pressures up to 120 PSI
• Available from 1/4” to 3” configurations
• Max Solids: 1/4″
• Max Suction Lift (Dry): 17 Feet
• Max Suction Lift (Wet): 29 Feet
• Air Inlet: 3/4″ FNPT

Metal Air-Operated Double Diaphragm

All-Flo Metal Air-Operated Double Diaphragm pumps are available in numerous different configurations, making them compatible with numerous different applications.  They are available with Stainless Steel and Aluminum wetted materials in clamped and bolted styles.  The elastomers available include: Geolast®, Santoprene®, PTFE, and Viton.  Connection types include ANSI/DIN flanges, FNPT and FBSPT.

• Flows up to 235 GPM
• Pressures up to 120 PSI
• Available from 1/2” to 3” configurations
• Max Solids: 11/16″
• Max Suction Lift (Dry): 20 Feet
• Max Suction lift (Wet): 31 Feet
• Air Inlet: 3/4″ FNPT

Hygenic, Sanitary and FDA Air-Operated Double Diaphragm

All-Flo Hygenic, Sanitary and FDA Air-Operated Double Diaphragm pumps are available in numerous different configurations, making them compatible with numerous different applications.  They are available with Polished or High Polished 316L Stainless Steel and Electropolished / Passivated Stainless Steel  wetted materials in Tri-Clamped styles.  The available elastomers include: Hytrel®, Santoprene®, PTFE and HDPE.  Connection types include Tri-Clamp fittings.

• Flows up to 225 GPM
• Pressures up to 120 PSI
• Available from 3/8″ to 3” configurations
• Max Solids: 19/32″ with Ball Valve or 2.60″ with Flap Valve
• Max Suction Lift (Dry): 24.4 Feet
• Max Suction Lift (Wet): 31.7 Feet
• Air Inlet: 3/4″ FNPT

Pulsation Dampeners

All-Flo has their own line of pulsation dampeners, specifically suited to be used with their Air-Operated Double Diaphragm pumps.  They are available in Aluminum, Stainless Steel, Polyethylene and PTFE.  Elastomers include EPDM, PTEFE and Buna-N.  Connections types include MPNT, MBSPT, ANSI/DIN FLange or Tri-Clamp.

• Available in 3/8″ to 3″ configurations
• Max Pressure up to 120 PSI
• Max Temperature up to 248° F

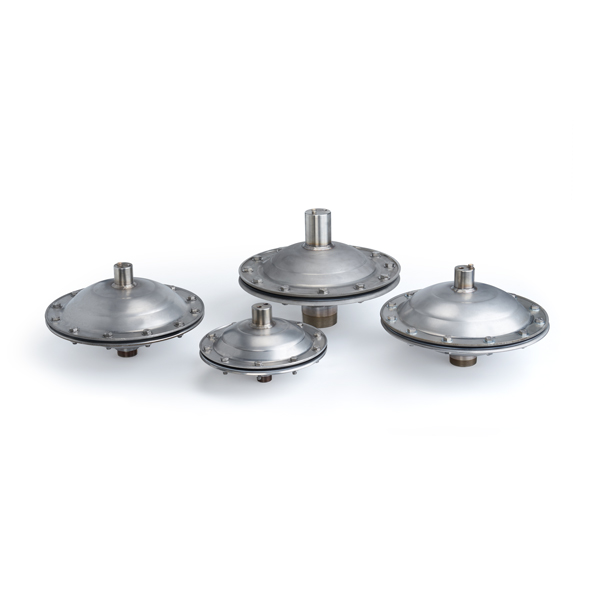

PDM Pulsation Dampeners

The All-Flo™ PDM Series Metal Pulsation Dampeners are essential accessories that enhance the performance and expand the application range of All-Flo Air-Operated Double-Diaphragm (AODD) Pumps. When installed at the pump’s discharge, these dampeners minimize fluid pressure and flow fluctuations, ensuring a smoother discharge flow. This is particularly important in applications where reducing system vibration is crucial for protecting and improving the accuracy of downstream instrumentation. Additionally, they extend equipment life by lowering the load on the pump.

Available in bolted metal construction, PDM Series Pulsation Dampeners are suitable for a variety of aggressive applications.

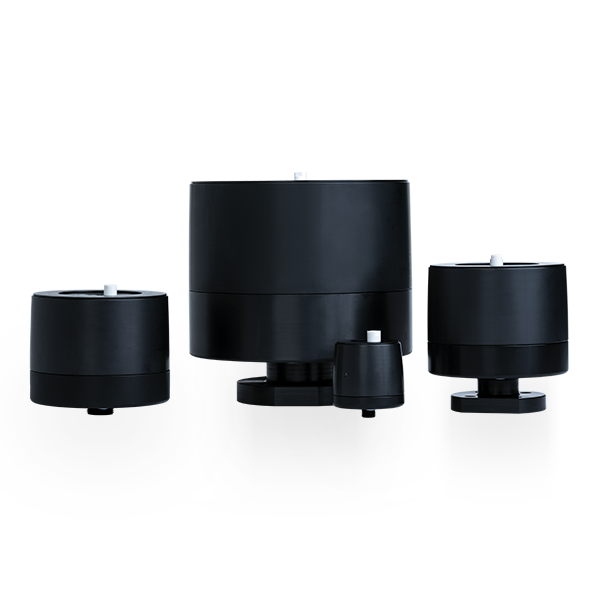

PDT Pulsation Dampeners

The All-Flo™ PDT Series Plastic Pulsation Dampeners are essential accessories designed to enhance the performance and expand the application range of All-Flo Air-Operated Double-Diaphragm (AODD) Pumps. When installed at the pump’s discharge, these dampeners reduce fluid pressure and flow fluctuations, resulting in a smoother discharge flow. This is crucial for applications that require minimized system vibration to protect and improve the accuracy of downstream instrumentation. Additionally, they help prolong equipment life by reducing the load on the pump.

The PDT Series Pulsation Dampeners are made from conductive plastic, making them ideal for applications that necessitate grounding and reduce the risk of electrostatic charges.
