SIMFLO

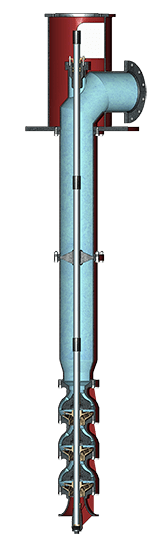

Open Lineshaft Vertical Turbine

SIMFLO Open Lineshaft Vertical Turbine Pumps are Engineered to meet a wide variety of applications and tested in adherence to strict quality standards.

Features:

• Available in sizes 4” – 28” with flows from 50 – 18,000 GPM
• Certified NSF/ANSI/CAN 61 and NSF/ANSI 372 from NSF International
• C955 Nickel Aluminum Bronze Impellers are standard for improved durability across practically all applications compared to Stainless Steel and Silicon Bronze. Made in USA (non-domestic options available in some models)
• Bowl castings feature thicker walls for higher pressure ratings and longer wear life
• Class 30 and Ductile Iron cast discharge heads are stocked for immediate shipment
• Fabricated discharge heads are designed and custom built per your specification
• Available with packing gland or mechanical seal arrangements
• Components are available in a wide variety of materials to suit the needs of your unique application

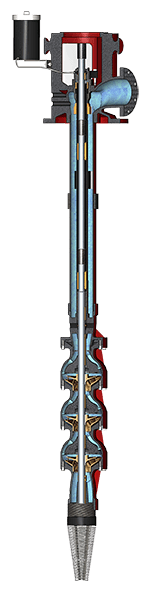

Enclosed Lineshaft Vertical Turbine

SIMFLO Enclosed Lineshaft Vertical Turbine pumps are ideal for industrial and agricultural applications requiring consistent performance and unmatched durability.

Features:

• Bowl models ranging from 6” – 28” with flows from 50 – 18,000 GPM
• Certified NSF/ANSI/CAN 61 and NSF/ANSI 372 from NSF International
• C955 Nickel Aluminum Bronze Impellers are standard for improved durability across practically all applications compared to Stainless Steel and Silicon Bronze. Made in USA (non-domestic options available in some models)
• Bowl castings feature thicker walls for higher pressure rating and longer wear life
• Class 30 and Ductile Iron cast discharge heads are stocked for immediate shipment
• Fabricated discharge heads are designed and custom built per your specification
• Robust inner column assembly can be designed for either oil lubrication or water flushed situations
• Components are available in a wide array of materials to suit the needs of your unique application
• Pressurized or recirculating flush available with packing gland or mechanical seal arrangement

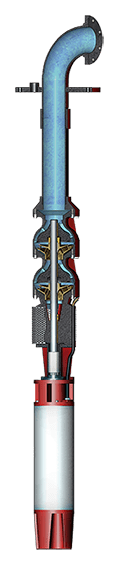

Submersible Vertical Turbine

Features:

• Bowl models ranging from 4” – 28” with flows from 50 – 18,000 GPM
• Certified NSF/ANSI/CAN 61 and NSF/ANSI 372 from NSF International
• C955 Nickel Aluminum Bronze Impellers are standard for improved durability across practically all applications compared to Stainless Steel and Silicon Bronze. Proudly Engineered in the USA
• Bowl castings feature thicker walls for higher pressure rating and longer wear life
• Fabricated discharge heads are designed and custom built per your specification
• Components are available in a wide array of materials to suit the needs of your unique application

S Series:

• Stainless steel construction
• Stainless steel discharge with built-in check valve
• High-efficiency stainless steel impellers and diffusers
• Stainless steel suction screen
• Stainless steel shaft and coupling
• Stainless steel NEMA faced mounting bracket
• Available in 4″, 6″, 8″ and 10″ diameters
• Capacities available from 5 GPM to 1200 GPM

N Series:

• Stainless steel discharge with built-in check valve
• Stainless steel motor adapter
• Stainless steel pump casing
• Stainless steel bowls
• Stainless steel strainer
• Stainless steel pump shaft and coupling
• Floating impellers
• Durable urethrane bearings
• Available in 4” diameters
• Capacities available from 5 GPM to 80 GPM

ES Series Vertical Turbine

N Series:

SIMFLO’s ES “N” Series 4″ submersible pumps with Noryl® impellers provide a stainless steel construction and corrosion resistance. Available in 5 to 80 gallon per minute sizes with 4″ single-phased and three-phased 1/2 HP to 10 HP motors.

S Series:

SIMFLO’s ES “S” Series 4″ submersible pumps provide a stainless steel construction and corrosion resistance. Available in 5 to 40 gallon per minute sizes with 1/2 HP to 7.5 HP motors.
