Mouvex - Eccentric Disc Pumps

MANUFACTURER OF POSITIVE DISPLACEMENT PUMPS AND COMPRESSORS

Since 1906, Mouvex has been an innovator in the eccentric movement disc pump. The Mouvex eccentric movement technology has many advantages over other pumps. Most Mouvex pumps do not utilize a mechanical seal and have the advantage of a leak free design and reduced maintenance time. A special metal bellows is integral to the pump and allows for a seal-less design without the need for a magnetic drive and containment cannister. Mouvex pumps can be cleaned in place (CIP) making cleaning and flushing simple without having to disassemble the pump. For sanitary applications, EHEDG and 3A certifications are available for the stainless steel models. The eccentric disc pumps provides gentle handling of fluids at high-volume efficiency. Mouvex eccentric disc technologies can be used in chemical, food, pharmaceuticals, cosmetics, agrochemicals, and petrochemicals.

The Mouvex design is self-priming and has the capability to run dry for a short period of time. The eccentric disc’s rotating motion allows for a constant and repeatable flow rate that produces low product shear. The pump is capable of handling shear sensitive liquids such as food, cosmetics, emulsions, sauces, yogurt and many more. Mouvex also has tank truck series eccentric disc pumps, sliding vane pumps, rotary vane pumps, peristaltic hose pumps, and a variety of truck compressors and accessories.

Visit Mouvex’s Website

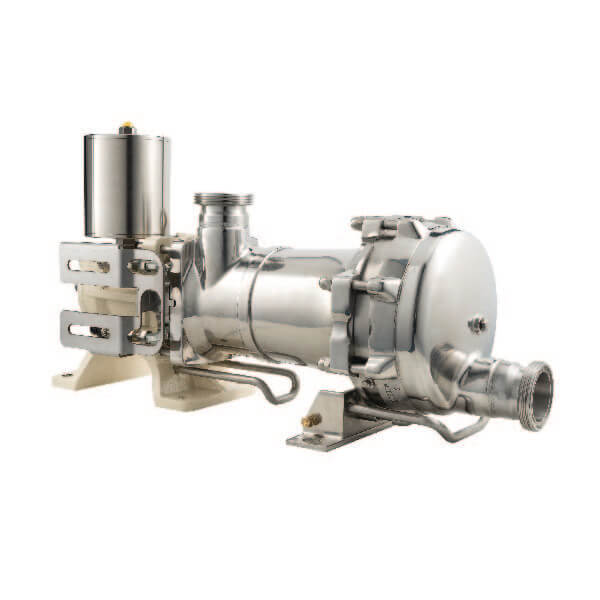

H-FLO Series

The Mouvex H-FLO Seal-Less Eccentric Disc Pump series has been designed for use in a wide range of extremely hygienic pumping applications, including food, cosmetic and pharmaceutical industries. H-FLO pumps deliver high suction vacuum and high discharge pressure that allow them to self-prime and fully strip lines – a critical consideration when maximizing product recovery.

Flows up to 300 gpm
Pressures up to 145 psi
Clean in place (CIP) and sterilize in place (SIP) for the ultimate in convenience and cleanliness

Request a Quote
Download Brochure

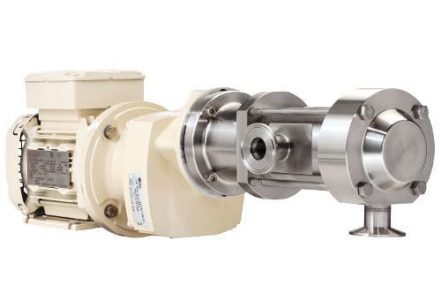

Micro C Series

The Mouvex Micro C series seal-less eccentric disc pumps are continuous transfer, low-flow metering pumps. They offer consistent flows and are minimally affected by fluctuations in pressure and viscosity. The Micro C series pump can be drained, has low shear, and has the ability to clear pipes. Constructed out of stainless steel they can meet 3A, EHEDG, and FDA requirements.

Flows up to 3.5 GPM
Pressures up to 217 PSI
Temperatures up to 212° F

Request a Quote
Download Brochure

C and SLC Series

The Mouvex C and SLC Series seal-less eccentric disc pumps have higher volumetric performance than the Micro C series. The have longer lasting performance efficiency than gear and lobe pumps that lose efficiency as they wear. The C and SLC series are used in a wide variety of food and process industries, especially ones that require CIP, SIP, and flushing requirements without having to disassemble the pump while maintaining gentle fluid-handling characteristics. They are self-priming with a strong suction power. They are ideal for low and high viscosities and shear sensitive fluids.

Flows up to 158.5 GPM
Pressures up to 232 PSI
Temperatures up to 320° F

C Series Brochure
SLC Series Brochure

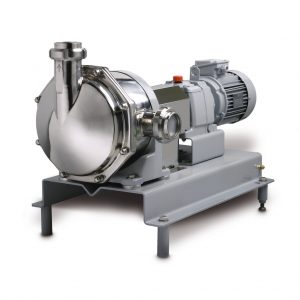

S and SLS Series

The Mouvex S and SLS Series seal-less eccentric disc pumps are specifically designed for hygienic applications. They have CIP and SIP capabilities but can also be cleaned by hand due to their quick and easy opening. The S and SLS series pumps feature a transmission mechanism protected by a tasteless, high-resistance elastomer sleeve. They are have precise dosing, low shear, accurate volume metering, and is leak free. Constructed in stainless steel, they meet 3A, EHEDG, and FDA requirements.

Flows up to 158.5 GPM
Pressures up to 232 PSI
Temperatures up to 212° F

Request a Quote
S Series Brochure
SLS Series Brochure

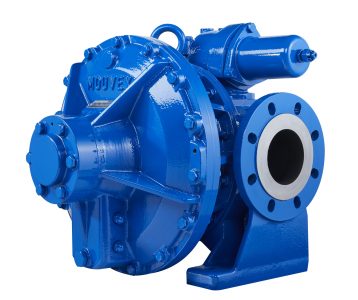

A Series

The Mouvex A Series eccentric disc pumps handle viscous, non-lubricating, volatile, or delicate liquids such as, detergents, glues, tallows, paint, fuels, oils, and many other heavy fluids. Theses durable pumps do not require any adjustments and maintain their performance levels over time. They can operate in either direction and can come with a jacketed head to handle the harshest of applications.

Flows up to 242 GPM
Pressures up to 145 PSI
Temperatures 302° F

Request a Quote
Download Brochure

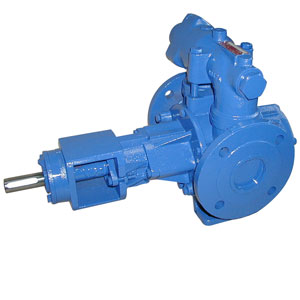

P Series

The Mouvex P Series is a vane pump to handle highly viscous products. It is ATEX certified and is capable of pumping non lubricating, abrasive, and corrosive products. The P Series can be disassembled without disconnecting the suction and discharge lines. Features included bidirectional flow, self-priming, self-adjusting vanes, and dry run capabilities.

Flows up to 484 GPM
Pressures up to 175 PSI
Temperatures up to 482° F
Viscosities up to 200,000 cSt

Request a Quote
Download Brochure

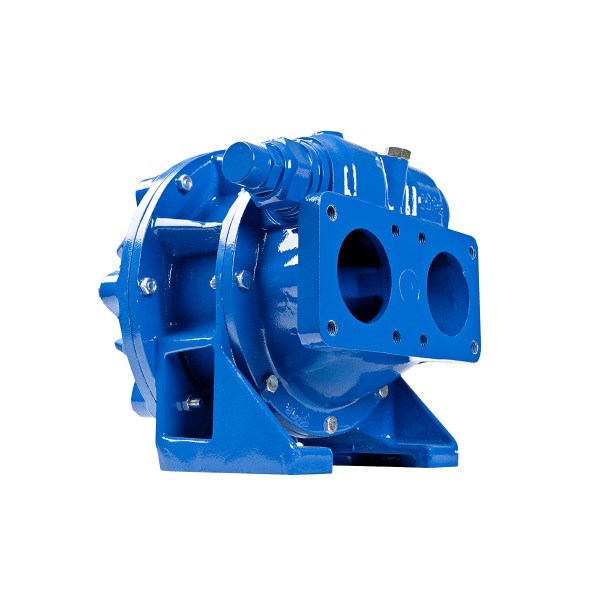

Tank Truck Products

Mouvex offers the CC8 rotary vane pump, the BLK 4-T rotary lobe pump, and the HYDRIVE hydraulic cooler. The CC8 pump is ideal for transferring petroleum products and features heavy duty construction and high performance for handling fuels, oils, and kerosene up to 900 cSt with flow rates up to 440 GPM. The BLK 4-T is a compact, narrow pump that is primarily used to transport food, beverage and chemical fluids. It features a built in heater and has reversible flow.

Flows up to 184 GPM
Pressures up to 101 PSI

Request a Quote
BLK 4-T Brochure
CC8 Brochure

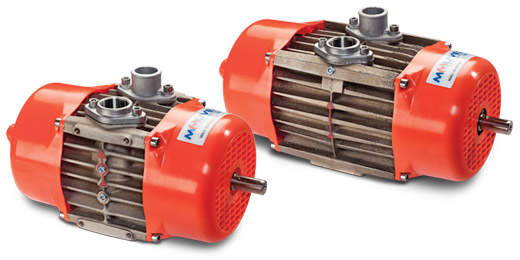

Compressors

Mouvex offers screw compressors and vane compressors that are designed for oil free discharge of dry bulk and fluids. Screw compressors are compatible with all trucks, all driving systems are possible, and are lightweight. The Enterprise vane compressors are designed to withstand the harshest environments and features blades that can be inspected without disassembling the compressor.
