LAKOS

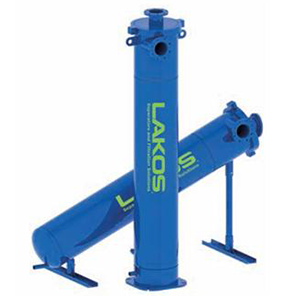

eJPX High Efficiency Liquid-Solid Seperator

The eJPX is a higher efficiency version of the JPX Separator, able to remove up to 98% of 44 micron (325 mesh) and larger solids in a single pass (with 2.6 specific gravity). Ideal for industrial/commercial applications. Pre-plumbed for quick installation of the SmartPurge System which can detect solids level in Separator and automatically activate purge valve.

• Flows up to 1,030 GPM
• No moving parts to wear out; no barriers or media to replace
• Low and steady pressure loss; as low as 3 PSI

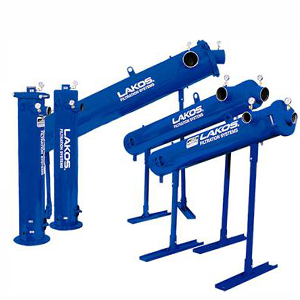

JPX-JPL High Efficiency Liquid-Solid Seperator

These separators are ideal for industrial commercial applications. The LAKOS JPX and JPL models are great for spray nozzle or small orifice protection, heat exchangers, pits, sumps, basin, pre-filtration, and waste minimization.

• Flows up to 12,750 GPM
• Pressures up to 150 PSI
• No screens or filter elements to clean or replace
• No backwashing; zero fluid loss options
• Low and steady pressure loss

ILB-ILS High Performance Liquid-Solids Separator System

The LAKOS ILB/ILS Separators are the versatile low flow rate filtration solution, ideal for low solids handling applications. These separators are designed to remove sand, silt, grit, and scale. They are available in both carbon and stainless steel.

• Flows up to 290 GPM
• Pressures up to 150 PSI
• No moving parts to wear out
• No screens, cartridges, cones or filter elements to clean or replace
• No backflusing

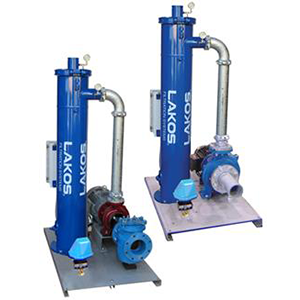

JCX-JBX Process Cooling Tower Basin Cleaning and Side Stream Filtration Systems

These full-stream, packaged separator systems are ideal for industrial cooling tower basins and remote sumps. They reduces blow-down, bio fouling, and chemical use.The energy efficient, environmentally friendly design maintains system efficiency and eliminates the need for manual basin cleaning. Eliminate underdeposit corrosion, water loss, and downtime with this complete filtration solution.

• Flows up to 1,200 GPM
• Pressures up to 150 PSI
• Save energy by maintaining entire system efficiency
• Eliminate the need for manual basin cleaning
• Minimize maintenance and downtime

PRX Elevated Seperator for Enhanced Solids Handling

This turnkey product is a complete separation and purging solution, combining a JPX separator with several purging and electrical control options.The PRX addresses the tough demands of the process industries, allowing for heavy solids loading with low-maintenance automatic purging options.

• Flows up to 12,750 GPM
• Pressures up to 150 PSI
• Fully-accessible LAKOS Seperator
• Choice of inlet profile
• Automatic purging options

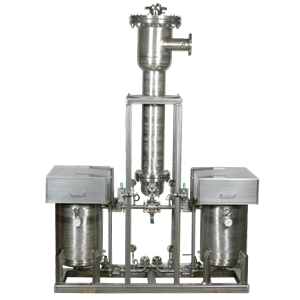

FrySafe Complete Cooking Oil Filtration System

Remove crumbs and fines to extend oil life and sustain high product quality. The FrySafe System offers a full flow, non-oxygenated, low maintenance, turnkey solution for cooking oil. The LAKOS FrySafe also includes a LAKOS CSX Separator, two collection vessels, and all the necessary valves and gauges for a complete cooking oil filtration solution.

• Flows up to 6,125 GPM
• Pressures up to 100 PSI
• Full flow filtration of the entire cooking oil reservoir
• Operates in a pressurized, non-oxygenated environment
• Longer operating cycles between downtime/maintenance

CSX Hot Oil Crumb and Fine Removal Seperators

Remove crumbs and fines to extend oil life and sustain high product quality. The CSX Separator offers a full flow, non-oxygenated, low maintenance filtration solution.

• Flows up to 3,125 GPM
• Pressures up to 100 PSI
• Full flow filtration of the entire cooking oil reservoir or system
• Operates in a pressurized, non-oxygenated environment
• Longer operating cycles between downtime/maintenance

Performance Plus Filter Cartridges

Lakos offers 6 types of Performance Plus water filtration cartridges for industrial, commercial and municipal applications. Select your cartridge based on flow, desired nominal or absolute micron ratings, and type of contaminant(s). Options include NSF-61 rating, high temperature and more.

• Polyester
  • Pleated polyester material
  • Standard cartridges nominal micron ratings: 0.35, 1, 5, 10, 20, 50, 100 and 150 (for use up to 140ºF)
  • High temp cartridges (250ºF) nominal ratings: 5, 10, 20, 50 micron include powder-coated metal core
  • Sizes: 10, 20, 30
• Carbon
  • Pleated 5 micron outer pre-filter, with solid carbon core
  • Nominal rating: 5 micron
  • Related to 125ºF
  • Cleanable and re-usable
  • Sizes: 10, 20, 30
• Silver Zeolite
  • Agion Silver Zeolite is FDA tested and registered with the EPA
  • Nominal ratings: 20, 50, 100 and 150 (for use up to 140ºF) micron
  • Cleanable and reusable
  • Sizes: 10, 20, 30
• Poly-Mesh
  • Nominal rating: 250 microns
  • For use up to 140ºF
  • Perforated metal core
  • Size: 30 only
• Cellulose Phenolic
  • Pleated material provides higher flow rates and lower pressure drop, maximum surface area
  • Nominal rating: 5 micron
  • Temperature: up to 250ºF
  • Cleanable and re-usable
  • Powder coated metal core and end caps
  • Sizes: 20, 30
• Polypropylene
  • 100% polypropylene (synthetic) material
  • Absolute micron ratings: 5, 10, 20, 50
  • High temp capability for sterilization and sanitation up to 194ºF
  • Made for food contact
  • Sizes: 10, 20, 30

Performance Plus Filter Housings

Performance Plus Filter Housings and Filter Cartridges incorporate unique features that enhance filter performance, allow longer run-times between filter change-outs and simplify maintenance. Single and multi-cartridge models accommodate flows up to 840 gpm.

• LP Cartridge Filter Housings
  • Flows up to 840 GPM
  • Pressure rating 150 PSI
  • Built to ASME design standards
  • Swing bolt to ASME design simplifies maintenance
  • Standard 304 Stainless Steel Housingwitb Electro-Polished Finish for superior durability and corrosion
  • Stainless Steel Standpipe(s)
  • Flanged Inlet and Outlet Connections
  • Compatible with all cartridges up to 250º with selection of appropriate temperature rated cartridge
• LQ Cartridge Filter Housings
  • Available in three sizes to match flow requirements
  • Pressure Rating 150 PSI
  • This flow pattern creates a spinning action which allows for more effective and uniform loading of the filter cartridges
  • NSF 61 Rated (1″ Models not NSF rated)
  • Standard 304 Stainless Steel Housing with Electro-polished Finish for superior durability and corrosion resistance
  • Threaded Inlet and Outlet Connections
  • CPVC Standpipe
  • Temperature up to 140º
• CFH Cartridge Filter Housings
  • Available in three sizes to match flow requirements
  • Pressure Rating 150 PSI
  • NSF 61 Rated
  • Standard 304 Stainless Steel Housing with Electro-polished Finish for superior durability and corrosion resistance.
  • Threaded Inlet and Outlet Connections
  • CPVC Standpipe
  • Bottom inlet/outlet
  • Temperature up to 140º

Disc Filter Systems

• Low pressure loss design (< 5 PSI when clean)
• Intelligently engineered to reduce moving parts, wear and maintenance
• High performance hydrocyclone input evenly loads filter surface for maximum run time between backflush cycles
• Unique design of discs acts like a pleated filter, dramatically increasing solids holding capacity
• Up to 75% less backflush water use during cleaning, compared to competitive products
• Patented design ensures solids removal across entire disc stack during backflush
• Virtually zero maintenance
• Configurations available for low pressure and sea water/saline water applications
• Fully automatic system
• Supplied as “ready to use” turnkey system including: filters, manifolds, base frame, three way valves, solenoid valves and controller, assembled on a skid

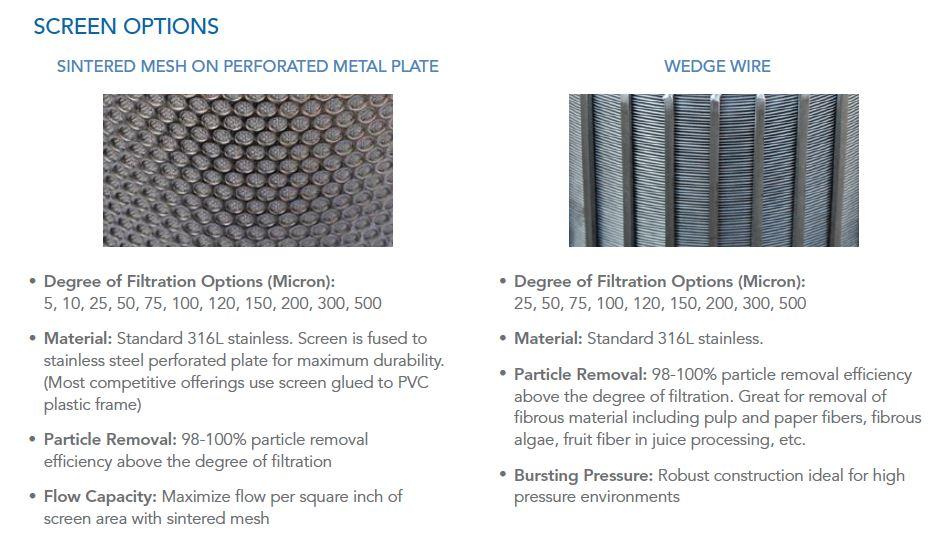

Self-Cleaning Screen Filters

• Continuous automatic operation, requires no operator intervention, ideal for remote sites
• Low water consumption for cleaning, less than 1% of total flow
• No interruption of downstream flow during cleaning
• Automatic flushing based on pressure-differential, hydraulic and electric control options
• Removal of both organic (algae, slime, floating debris) as well as sand, grit and inorganic particles to a fine micron level
• Each filter comes complete with housing, screen, flush ball valve, controller and DP switch
• ASME, CE, PED available and NSF pending
• Intelligently engineered, focusing on wear points to maximize durability and ensure maximum operating hours before required maintenance
• Unlike competitive PVC-backed screens, LAKOS screen is fused to stainless steel plate for maximum durability
• 304 Stainless Steel Housing and 316 stainless steel screen standard, other materials available upon request
• Smart design, resulting in minimal moving parts and easy maintenance
• Compact designs allow flexibility in installation position and orientation
• Over 140 different models available, each with 20 different screen options to meet any application requirement

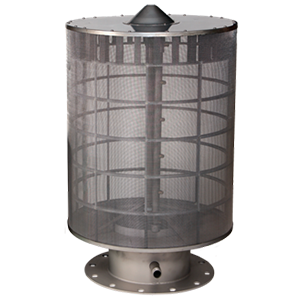

ISF Self-Cleaning Screen

This open source water intake screen is the unique solution for protecting commercial/industrial pumps and water systems. The self-cleaning screen rotates so that debris is blown away, unlike other screen filters that stay in place, wasting time and energy due to clogging. The ISF is ideal for rivers, canals, lakes, or other source water locations. It protects pumps and other water system components from leaves, algae, moss, sticks, and other troublesome debris.

• Flows up to 2,700 GPM
• Protects pump
• Energy savings
• Reduces maintenance
