Hayward Gordon

CHOPX Series

Hayward Gordon CHOPX pumps function dually with cutting and pumping capabilities. They are made for applications that require solids size to be reduced or where downstream equipment needs protection. The clamp type construction enables the wet end to be constructed of wear resistant materials to maximize component life against abrasives. CHOPX pumps are typically found in waste treatment, pulp and paper, and food processing industries. Configurations included direct drive, vertical dry pit, vertical line shaft, v-belt drive, submersible, and vertical cantilever. Materials of construction include Ni-Hard, Super Ni-Hard, High Chrome, Tool Steel as well as Cast Iron and High Alloy materials.

• Flows up to 6,000 GPM
• Pressures up to 56 PSI

XCS Series

The Hayward Gordon XCS series pump is a screw centrifugal solids handling pump that can handle thick sludge, large or stringy solids, shear sensitive fluids, and delicate materials. The open channel screw centrifugal impeller provides gentle, clog free pumping with high efficiency and non-overloading characteristics. Drive configurations include direct drive, v-belt, vertical dry pit, and submersible. Materials of construction include Ni-Hard, Super Ni-Hard, High Chrome, Tool Steel as well as Cast Iron and High Alloy materials.

• Flows up to 10,500 GPM
• Pressures up to 78 PSI

Torus Recessed Impeller Pump

Hayward Gordon’s Torus Series is a recessed impeller or vortex pump, which has a semi-open impeller recessed into the rear section of the volute away from solids being pumped. The XR and R series are equipped with a wear ring to protect against abrasion of expensive parts, while the RS has no wear ring but has the highest efficiency of vortex pumps. Torus pumps can handle large soft solids, long string or fibrous materials, fragile solids, slurries, and sludge with highly abrasive solids. Drive configurations include direct drive, v-belt, vertical dry pit, vertical cantilever pump, and submersible. Materials of construction include Ni-Hard, Super Ni-Hard, High Chrome, Tool Steel as well as Cast Iron and High Alloy materials.

• Flows up to 2,750 GPM
• Pressures up to 87 PSI

Top Entry Mixers

Hayward Gordon Top Entry Mixers handle some of the toughest applications in mining, chemicals, and petrochemicals. They come with CFD modeling, the latest impeller technology, and lab testing with scale up capability. The N Series is specifically for mixer service. The ST-Series is ideal for medium size tanks with a helical gear design. The MB series are ideal for tough applications such as harsh chemicals or mining. The LH series are designed for extreme loading condition common to mizing applications which require large gear reducers.

• Up to 500 HP
• 9 Different Impellers
• Exotic alloy wet ends

Side Entry Mixers

Hayward Gordon Side Entry mixers have some advantages in design, installation, operation, and maintenance over other mixers. The PSE and SHARPE series can fit applications that include petroleum, pulp and paper, and asphalt. They have a durable rugged design and have high tank turnovers. The swivel design minimizes build-up and tank down-time while maximizing efficiency.

• Up to 200 HP
• High efficiency dydrofoil impellers
• Seal shut-off device

ANSIMax

Hayward Gordon ANSIMax Series process pumps are standard ANSI B73.1 centrifugal pumps. The have impeller options of reverse vane, semi-open, and low-flow. Various seal chambers are available with 3 flow modifying versions and to conventional cylindrical bore versions. The FM versions optimize flow patterns to move heat and solids away from the mechanical seal and out of the chamber.

• Flows up to 7,400 GPM
• Pressures up to 427 PSI

Vertical Turbine

Hayward Gordon vertical turbine pumps are used by some of the largest mining companies in the world, reducing their operating and maintenance cost through pump efficiency. The single stage design delivers 3 times the head of a standard VTP pump. They have stainless steel investment cast impellers, polymer rubber bearings, and industry leading deliveries.

• Flows to 95,000 GPM
• Pressures up to 867 PSI

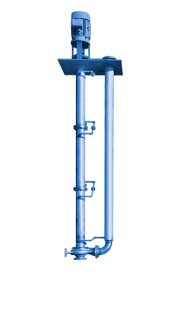

Molten Sulfur

Hayward Gordon Molten Sulfur pumps can handle some of the harshest environments in the world, capable of temperatures from -40 F to 400 F. These pumps have shown for over 50 years that they can handle the toughest applications for clean or contaminated molten sulfur. Models available included jacketed vertical lineshaft, jacketed vertical cantilever, and jacketed horizontal pumps.

• Flows up to 4,000 GPM
• Pressures up to 292 PSI

API

Hayward Gordon API pumps meet API 610 requirements for refinery and oil and gas applications. These pumps are custom engineered to your specifications according to the latest edition of API 610. Configurations include high pressure multi-stage, single and two stage, vertical inline vertical turbine and sump pumps.

• Flows up to 88,000 GPM
• Pressures up to 1,517 PSI
• Temperatures up to 1050° F

In-line Mixers

Hayward Gordon In-line Mixers mix process fluid without the need for an additional tank unit. The mixer provides continuous uniform mixing for blending, dispersion, and solids “de-lumping”. The mixers have a low capital cost, low power consumption, compact design, and can handle very high flows with low head loss, while ensuring complete dispersion of coagulants.

• Up to 400 HP
• Up to 72” diameter pipeline

SmartFlex Series

SmartFlex peristaltic hose pumps are available in both high and low pressure designs. The SRP and LRP series pumps are fitted with roller technology that reduce hose stress and provide substantially increased hose life, don’t require lubrication and consume less energy than the shoe type technology. Excellent for pressures up to 116 PSI. When higher pressures to 232 PSI are required the STP series sliding shoe design is the pump of choice. The heavy duty STP pumps are the workhorse of the industry and can be found in some of the toughest applications.
