Franklin Electric

Centrifugal Pumps

Franklin Electric’s offering of large centrifugal pumps covers a wide range of configurations for your specific application. End-suction centrifugal pumps are available from 1/2 hp through 200 hp, featuring our innovative and energy-efficient AG Series line. Centrifugal pumps are offered in close-coupled, frame mount and SAE drive.

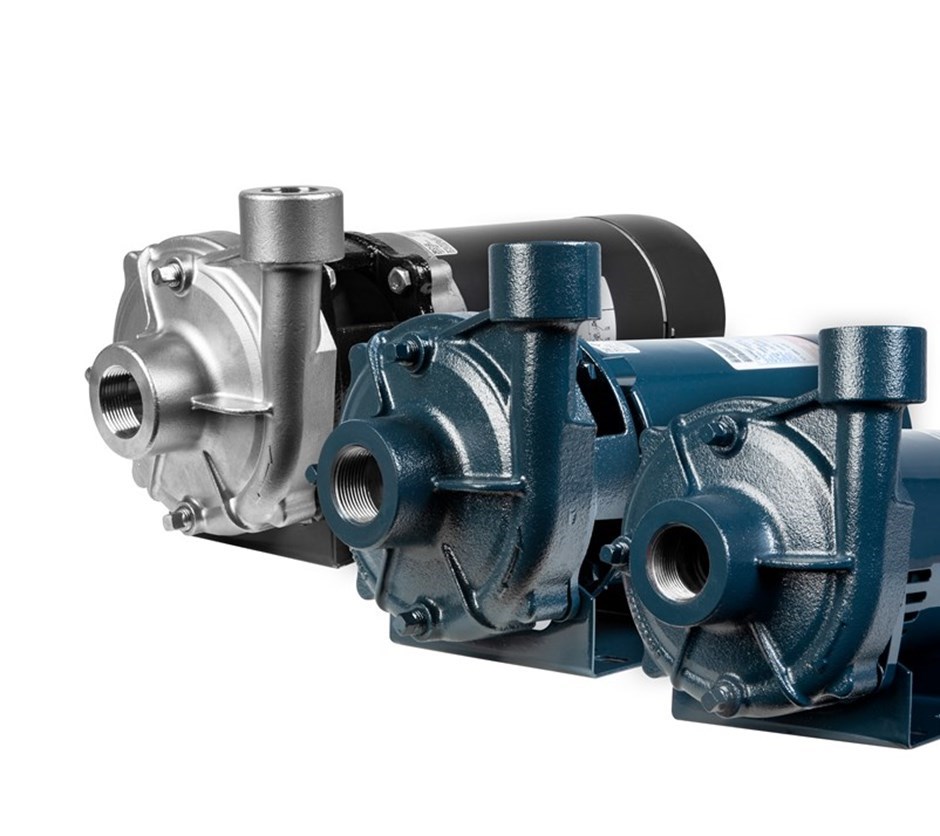

• D Series
• DR Series: DR1, DR2
• AG Series: A1 x 1.5-7, A1.5 x 2-6, A2 x 3-10, A2.5 x 4-10. A2 x 2.5-6, A2 x 3-8, A2.5 x 3-6, A3 x 4-6, A3 x 4-9, A6 x 8-13
• F Series: FCE, FAC (1/2-2 HP), FAC (3-5 HP), FBC Series
• I Series: 7.5-Inch, 9-Inch, 10-Inch, 13-Inch, 14-Inch
• Frame Mount: FAOT, FACT, 7.5-Inch, 9-Inch, 10-Inch, 13-Inch, 14-Inch
• SAE Engine Drive: 9-Inch, 13-Inch
• Hydraulic Driven: 9-Inch
• Specialty: SS, End Gun Booster
• Water Truck: 9-Inch

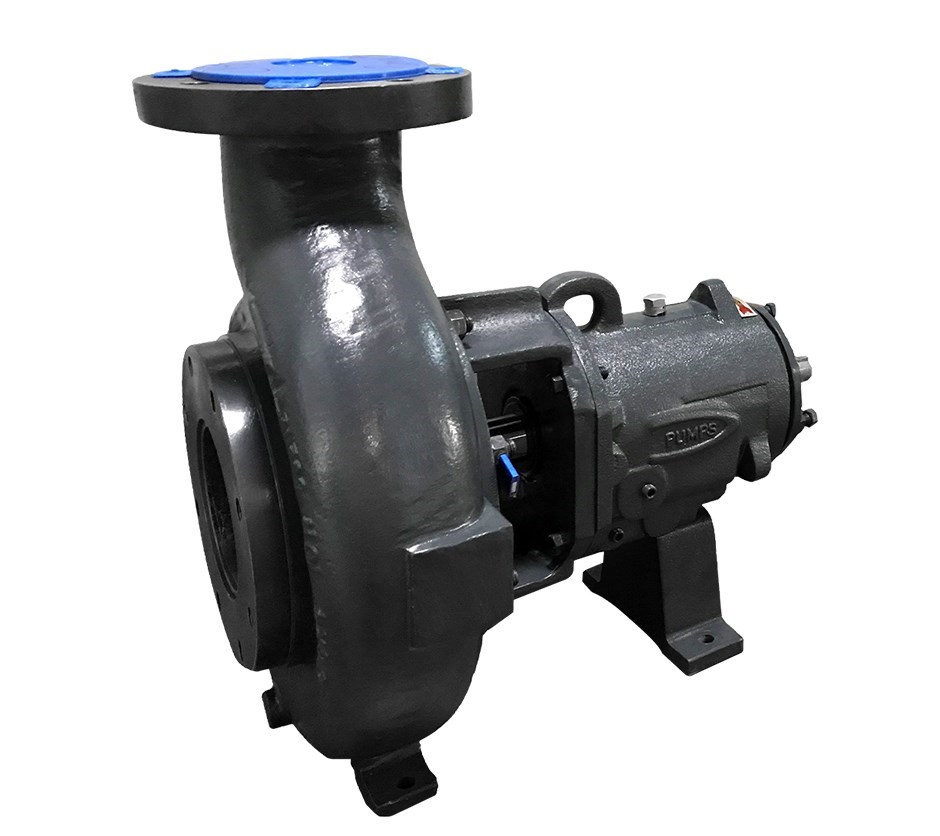

FSD Series ANSI Process Pumps

The FSD Process ANSI pumps are used in a variety of industrial applications such as steel mill, mining, power generation and oil & gas applications. This heavy wall, reverse-vane, 304 investment cast stainless steel impeller design provides a durable and dependable product and is perfectly suited for petrochemical applications. These heavy duty process pumps feature double row outboard and single row inboard bearings standard. Each bearing housing is oil-lubricated to ensure maximum bearing life.

• Flows To: 7,400 GPM
• Heads To: 985 Feet
• Temperatures To: 500ºF
• Speed Ranges: 900 RPM To 3600 RPM
• Size Range: 1×1.5-6 (26/16) – 8×10-16 (200/40)

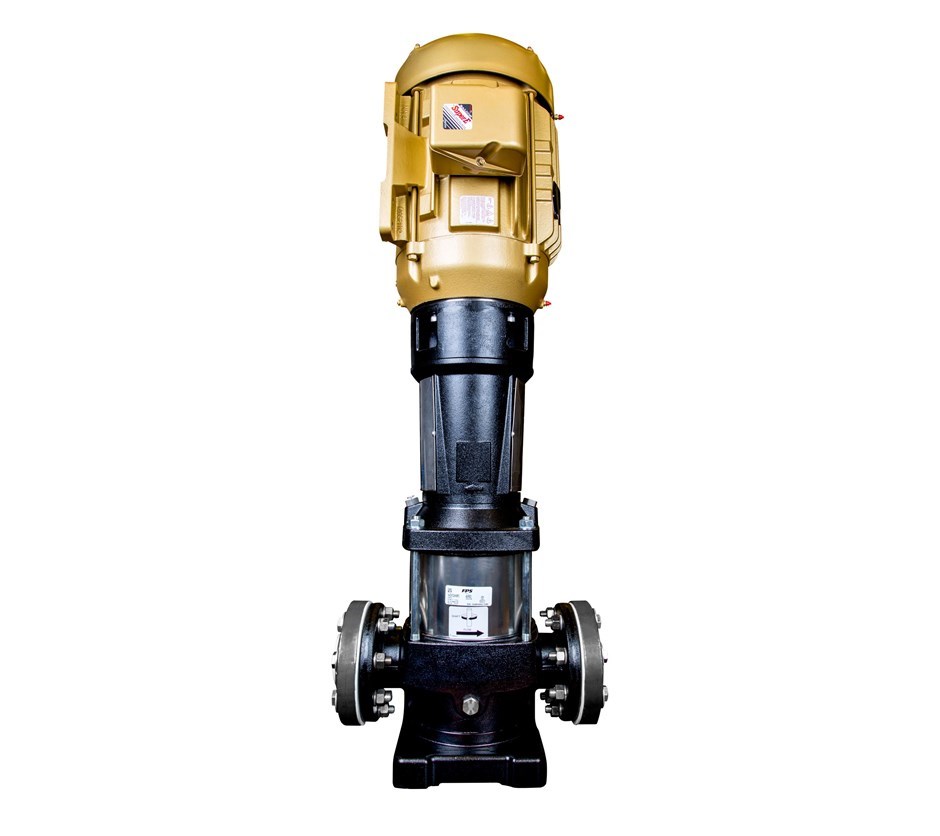

Multi-Stage Pumps

Franklin Electric’s multi-stage centrifugal pump offering includes horizontal and vertical configurations. These units are available in various metallurgies (cast iron, 304 stainless steel and 316 stainless steel) to satisfy your specific application requirements. Units are now available up through 60 hp.

• BT4 Horizontal Booster Pump
• VR Series Vertical Multi-Stage Pumps (1VR, 3VR, 6VR, 10VR, 15VR, 20VR, 30VR, 45VR, 65VR, 95VR)

Self-Priming Pumps

Franklin Electric’s self-priming offering of both clear water and solids handling units is among the widest available in the industry. Solids handling capability is up through 3 inches. Most self-priming pumps are available in electric drive, gas engine drive and frame mount drive.

• Close-Coupled: Turf Boss (1-2 HP), Turf Boss (3-5 HP), FBSE (1/2-3 HP), FBSEF (1.5-7.5 HP)
• Frame Mount: FMIT, FTT, FBSTF
• Hydraulic Driven: FMIH

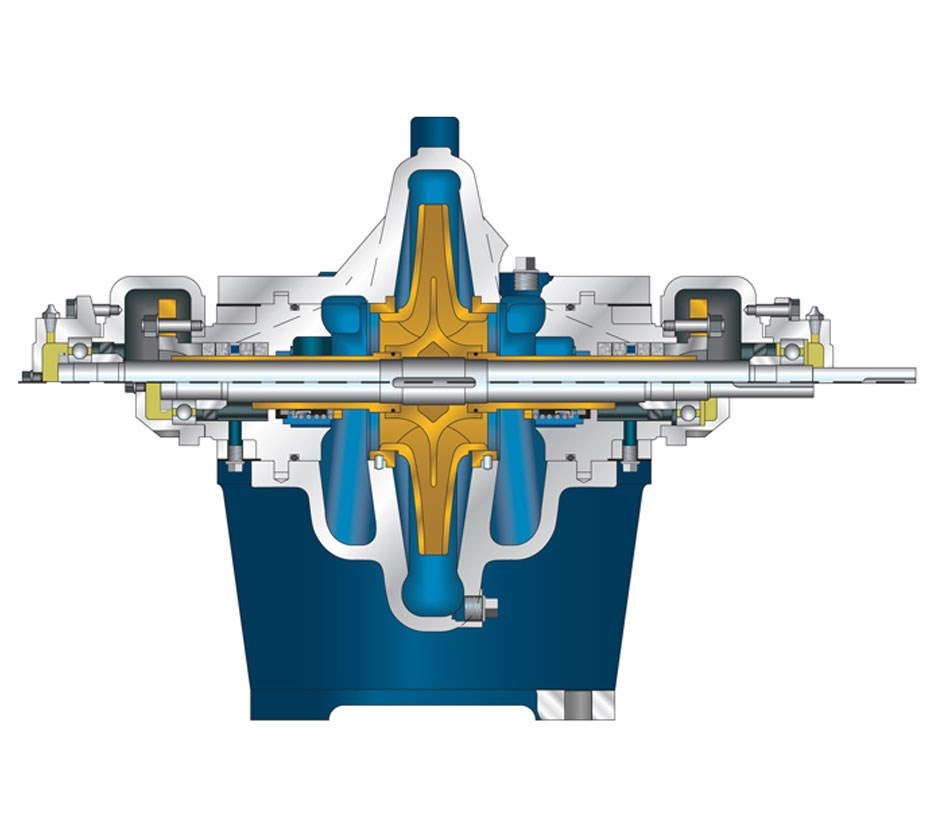

SP Series Single Stage Split Case Pumps

The SP split case pumps are used in a variety of commercial, industrial & municipal applications. The casing features an exclusive Thru-Bore line boring machining operation that greatly simplifies manufacturing and maintenance. Bearing & bearing housings can be inspected and/or replaced without removing the top part of the casing. The rotor assembly also features completely removable and replaceable packing housings/seal chambers with a replaceable vortex suppressor. The centerline of the pump has also been increased to ensure that suction and discharge flanges do not interfere with the pump foundation. Each model features 250# cast dimensional flanges and 420 stainless steel shafting.

• Flows To: 30,000+ GPM
• Heads To: 550 Feet
• Temperatures To: 300ºF
• Speed Ranges: 500 RPM To 3600 RPM
• Size Range: 2.5×3-10 (65/24) – 32×40-40 (800/100)

Submersible Pumps & Vertical Lineshaft Turbines

With flows up to 40,000 gallons per minute (GPM) and heads up to 2,500 feet, Franklin Electric offers a wide selection of strapped, cast iron, and cast stainless submersible turbines, along with an extensive offering of lineshaft turbines that help you cover almost any pumping application.

• 4″ High Capacity Pumps
• 6″ 4400 Submersible Radial Pumps
• 6″ and 8″ SR Series Turbine Pumps
• 6″ SSR Series Submersible Turbine Pumps
• 5″, 6″, 8″, and 9″ STS Series Turbine Pumps
• 6″, 8″ and 10″ SSI Series Submersible Turbine Pumps
• 6” – 12” FST Series Submersible Turbine Pumps
• 5″ – 42″ FVT Series Vertical Lineshaft Turbine Pumps
• 8″ – 30″ FAF Series Axial Flow Vertical Turbine Pumps
• 8″ – 30″ FMF Series: Mixed Flow Vertical Turbine Pumps

XA/AQU/KTG Series End Suction Pumps

The XA, AQU, KTG Series end suction product lines are one of the most common and versatile centrifugal pumps used in a variety of markets in the industry, such as HVAC & building trades markets. Whether you are pumping clean water, high temperature condensate or raw water, these robust and highly engineered series offer flex-coupled, close-coupled and vertical inline end suction solutions for your application.

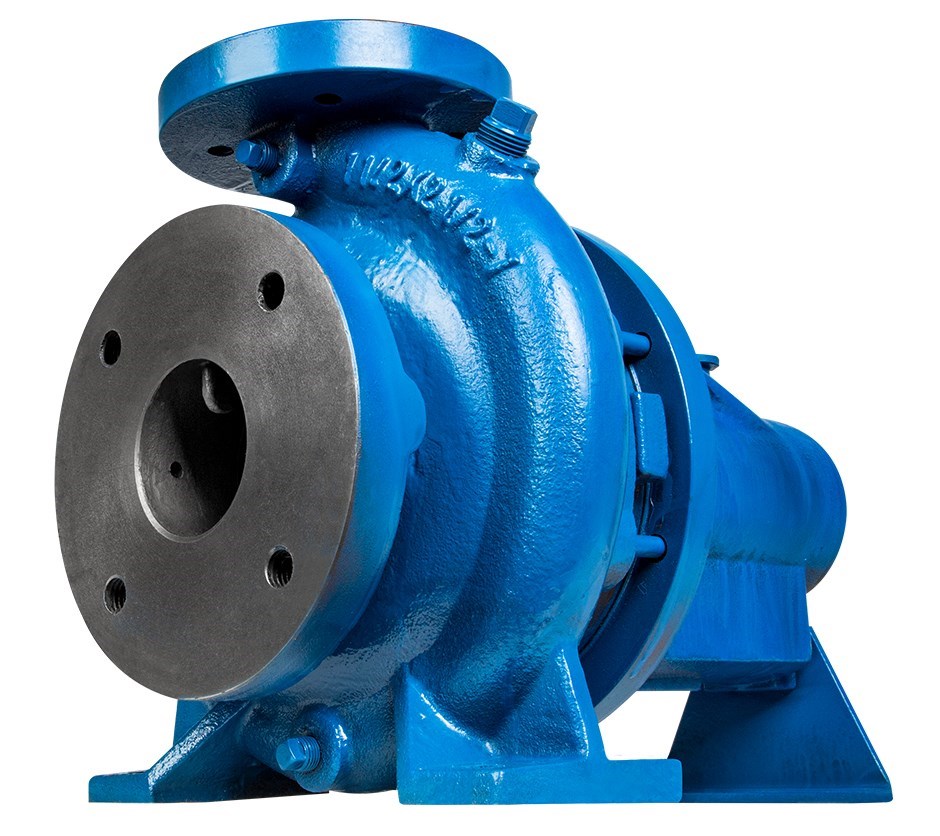

XA Series Flex-Coupled End Suction Pumps

• Flows To: 24,000 GPM
• Heads To: 450 Feet
• Temperatures To: 350ºF
• Speed Ranges: 900 RPM To 3600 RPM
• Size Range: 1.25×2-5 (32/13) – 28×32-24 (700/60)

AQU Series Close-Coupled End Suction Pumps

• Flows To: 9,000 GPM
• Heads To: 450 Feet
• Temperatures To: 250ºF
• Speed Ranges: 900 RPM To 3600 RPM
• Size Range: 1.25×2-5 (32/13) – 12×14-16 (300/40)

KTG Series Vertical Inline End Suction Pumps

• Flows To: 9,000 GPM
• Heads To: 450 Feet
• Temperatures To: 250ºF
• Speed Ranges: 900 RPM To 3600 RPM
• Size Range: 2×2-5 (50/13) – 14×14-16 (350/40)
