Liquiflo Chemical Processing Pumps

H Series

The H series pumps are heavy duty, high pressure gear pumps available in mechanically sealed, packing sealed, and mag-drive configurations with long coupled and close coupled options with NPT/BSPT, ANSI 150# flanged, and DIN PN16 flanged connections. The H series has a larger diameter shaft and bearings than the 3 Series, giving it the ability to handle higher pressures with extended service life. They are constructed with 316 SS or Alloy-C with component materials including peek, carbon, Teflon, and Ryton, in addition to the alloys, to meet your process flow needs.

• Flows up to 30 GPM
• Pressures up to 300 PSI
• Temperatures up to 500° F

3 Series

The 3 series is a standard duty gear pump available in long and close coupled with mechanical sealed, packing sealed, and mag-drive versions with NPT/BSPT, ANSI 150# flanged, and DIN PN16 flanged connections. They are constructed in 316 SS, Alloy-C, or Alloy-20 with component materials including peek, carbon, Teflon, and Ryton, in addition to the alloys, to meet your process fluid needs.

• Flows up to 55 GPM
• Pressures up to 100 PSI
• Temperatures up to 500° F

Max Series

The Max series pumps use spur gears and relieved wear plates providing smoother and quieter operation and intrinsic reduction of gear separation forces. The design enables the pump to have an extended life in high pressure applications. Materials of construction include 316 SS, 17-4 PHSS, titanium, and peek. The pump is available in close and long coupled design with either single or double mechanical seal or Mag-Drive configurations using NPT/BSPT or ANSI flanged connections.

• Flows up to 20 GPM
• Pressures up to 350 PSI
• Temperatures up to 500° F

4 Series

The 4 series was design specifically for OEMs with low flow needs. They have a wide variety for the materials of construction to accommodate a wide range of chemical processing applications. A unique feature of the 4-Series pump is its parallel port connections located on the front of the pump. Housings are available in 316 SS, Alloy-C or Titanium and gears are available in Teflon, Ryton, and Peek in addition to the metal alloys. The 4 series is available in a close coupled, mag drive configuration with NPT or BSPT connections.

• Flows from 0.5 to 3.4
• Pressures up to 100 PSI
• Max temperature 500° F

2 Series

The 2 series were designed for low flow applications. They are compact, rugged and capable to fit into many applications such as, chemical dosing and metering, pipeline sampling and waste water treatment. They are available in a close coupled, mag-drive configuration with a 316 SS housing with 316 SS, Alloy-C and peek gear materials.

• Flows up to 32.5 GPH
• Pressures up to 225 PSI
• Temperatures up to 500° F

Centry Series

Centry pumps were created to solve maintenance problems with ANSI pumps operating at less than BEP in low flow applications. These pumps have excellent equipment reliability. They are close coupled pumps with mechanical seal, packing seal, and mag drive configurations and available in 316 SS and Alloy-C with NPT and ANSI 150# flanged connections.

• Flows up to 160 GPM
• Pressures up to 43 PSI
• Temperatures up to 500° F

Endura AB/MC Series

Endura pumps are Group I and Group II ANSI-Dimensional Magnetically-Coupled centrifugal pumps designed to handle many difficult pumping applications. These pumps are capable of dry-running, pumping slurries, or high temperatures.  They are available in 316 SS or Alloy-C constructions with flanged connections.  The MC is the standard ANSI mag- drive centrifugal pump covering a wide range of applications. The AB series uses the patented air barrier to seal the pump; it can run dry indefinitely and handle solids – something no other pump in the industry can do.

• Flows up to 770 GPM
• Pressures up to 182 PSI
• Temperatures up to 350° F

Poly-Guard Series

The Polyguard series pump is a plastic rotary positive displacement pump for the chemical industry. Floro-polymer lined stainless steel combined created a highly corrosion resistant and robust pump for safe use in industrial applications. The Poly-Guard is an excellent choice for inorganic acids, bases, and salts. Connections include ANSI 150# and DIN PN16. Gears are available in PEEK, kynar, ryton, and teflon

• Flows up to 15 GPM
• Pressures up to 100 PSI
• Temperatures up to 200° F

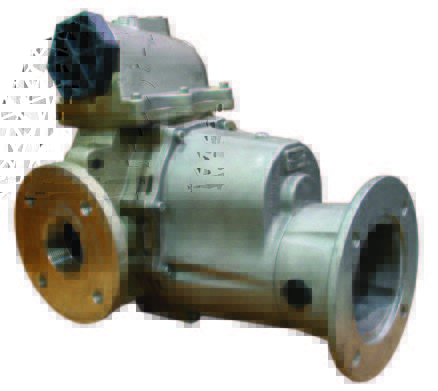

FTS Series Pump

Liquiflo’s FTS-Series fluid transfer pumps are high-performance continuosly dry-runnable positive displacement pumps built for a variety of industrial applications, capable of transferring a wide range of fluids. The FTS150 (1.5 inch) and FTS200 (2 inch) pumps feature tri-lobe rotors that deliver dry run capability for flow rates up to 180 gpm. The FTS300 (3 inch) and FTS400 (4 inch) pumps can handle up to 320 gpm and 600 gpm respectively. These larger pumps also feature a boosted suction to reduce cavitation and deliver high suction lift.

Available in 1.5″, 2″, 3″, 4″

• Flows up to 600 GPM
• Pressures up to 140 PSI
• Temperatures up to 250° F

Fluid Transfer Carts & Filtration Systems

Designed for easy transport and for accessing remote and difficult to access locations, our mobile systems bring reliable pumping operations anywhere you need them. Featuring dry-Run durability, no priming necessary. Fluid carts offer full flow in either forward or reverse direction and filtration systems have differenial gauges for bag filter and coalescer housing indicate when filters need to be changed out. Easy mobility with light-weight aluminum housings. They can be equipped with accessories such as custody transfer meters, hoses and reels, nozzles and control centers to suit your specific needs.

• Flows up to 120 GPM
• Inlet (suction) Hose with FxF Camlock fittings:
  (available in 10, 20 and 30 ft lengths)
• Outlet (discharge) Hose with FXF Camlock fittings:
  (available in 10, 20 and 30 ft lengths)
