Gusher Pumps

7550 / 7600 Vertical Heavy Duty Pumps

Gusher offers the 7600 series top pull out series, enclosed column, vortex, slurry, and the 7550 series vertical end suction centrifugal pumps. These vertical pumps completely remove the need for a seal, there is no alignments required, and require less floor space. The 7600 is designed to minimize maintenance by making the rotating element removable without disturbing the mounting plate or piping. The pump can be either chair mounted or barrel mounted. Applications include spray booths, filtration systems, paint systems, spray washers and many more.

• Flows up to 4,000 GPM
• Heads up to 275 ft
• Extended lengths available up to 20 ft

7800 Vertical and Horizontal Series Pumps

The 7800 Series end suction pump come in self-priming jet pumps, close coupled vertical and horizontal, direct drive, and the SEV line styles. They have dry run capabilities and are available in back pull out with a one piece shaft for easy maintenance. Lengths can be extended to suit your needs. These are available in both cast iron and stainless steel. Applications include spray booths, parts cleaners, coolant systems, industrial sump applications, cooling towers and many more.

• Flows up to 800 GPM
• Pressures up to 303 PSI
• No metal to metal contact to extend pump life
• Available in above the plate discharge

Horizontal ANSI / DIN 7071 Series Pumps

The DIN and ANSI centrifugal pumps feature standardized engineered parts to ensure interchangeability enabling quick and easy conversion of the pump assembly to your application. DIN pumps are designed to match the DIN 733 standard dimensions and the volute inlet and outlet flanges are made according to the PN16 standard. The ANSI pump is designed to ANSI 73.1 styling with ANSI 16.5 flanges.

• Flows up to 6000 GPM for ANSI; 1500 LPH for DIN
• Pressures up to 325 PSI for ANSI; 150 m for DIN

Gusher CL-CC Series General Service Industrial Pumps

Reliable and economical, the Gusher Pumps CL-CC Series is an excellent choice for general or industrial service pumping. The closecoupled design and ANSI dimensional casing simplify installation. Easy to operate and maintain, the Gusher CL-CC Series saves the operator on maintenance time and costs. The Gusher CL-CC Series features include a back pullout design to help reduce service downtime and renewable shaft sleeves to protect from wear. They also feature a mechanical seal to prevent leakage, and a semi-enclosed impeller to handle lighter solids. Applications include, but are not limited to, deionized water, water purification, bottle washing, waste water, paint systems, chillers and batch processing.

Type: Centrifugal, End Suction (available in cast iron or stainless steel construction)
Flow: Up to 1600 gpm
Head: Up to 700’ TDH
Liquid Temp: Max 250° F
Max Pressure: to 300 PSIG
Motor Type: NEMA JPM Shaft Motor
Intake: 1.5-6”
Discharge: 1-4

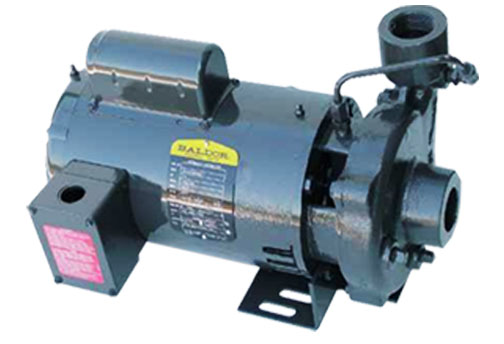

Gusher SC-CC Series General Service Industrial Pumps

The Gusher SC-CC Series pump is a reliable and economical choice for general service pumping or industrial services. It’s close coupled, which makes installation simple. It’s easy to operate and generally has low maintenance costs over its lifetime. The Gusher SC-CC Series features include a back pullout design to help reduce service downtime and renewable shaft sleeves to protect from wear. They also feature a mechanical seal to prevent leakage, and a semi-enclosed impeller to handle lighter solids. Applications include, but are not limited to, deionized water, water purification, bottle washing, waste water, paint systems, chillers and batch processing.

• Capacities to 450 gpm
• Heads to 160 feet
• Temperatures to 180o F (83o C)
• Pressures to 175 PSIG

Gusher SPP Series Horizontal Self-Priming Solids Handling Pumps

The Gusher SPP Series pumps are designed for handling dirty applications and high solid levels. Affectionately known as Gusher’s “Trash Hog” due to its superior solids handling capabilities, the SPP series has a wide range of uses from agricultural to industrial. Priming and air separation is achieved conveniently within the casing, so there are no external valves, air separator or priming chamber required. Applications include, dirty high solids fluids, agricultural, amusement parks, transfer systems wastewater and water purification.

Features

• Capacities up to 4,000 gpm
• Pressures up to 170’ TDH
• 2” to 12” Discharge
• Temperature up to 600ºF
• Max Solids Handling up to 3” Diameter Cleanout Ports
• High Pressure HP Models
  –  Cover 1-100 hp at Pressures up to 200’ TDH
  –  3” to 6” Discharge
  –  Max Solids Handling up to 1¼” Diameter

Vortex Non-Clog Series Pumps

The Gusher Vortex Non-Clog series pumps are designed to handle large solids and fibrous materials without clogging. Even with low flows, the Vortex Non-Clog Series Pump design allows throttling to a low performance range that is unacceptable to many centrifugal pumps. The complete Vortex Non-Clog line has been designed to pump various oils and liquids containing up to 30% entrained air. It will operate 23% below its first critical speed at any point of operation.

• Flows up to 2,800 GPM
• Pressures up to 173 PSI
• Capable of handling solids up to 6″

8000 Series Self-priming Pumps

The 8000 series has a wide range of uses from agriculture and industrial. They have semi-open impellers and can have an external impeller adjustment. Maintenance is easy with the back pull-out configuration. They also feature clean out ports for fast removal of foreign objects. Available in stainless steel and ductile iron construction and can be gasoline or diesel engine drive with base mount or close couple styling. Applications include filtration, irrigation, dewatering, tnak car unloading, sump transfer, and many more.

• Flows up to 1200 GPM
• Pressures up to 56 PSI
• Temperatures up to 600° F
• Sizes from 1” to 6” discharge

Vertical and Horizontal Multistage Coolant Series

The multi-stage line offers both vertical and horizontal styles. They can feature a pressurized system, a double pump capabilities (high and low pressure with one motor), a balanced mechanical seal (silicon and tungsten available), mounting to 10-200 gallon reservoir, and NPT or BSPT connections. Many models include a duel discharge configuration– one used for low volume and high pressure; the other used for high volume and low pressure. A common application is for high pressure machine tools.

• Flows up to 55 GPM
• Pressures up to 400 PSI
• Up to 36″ of Immersion with Intermediate Bushing
• Rugged Grade 30 Cast Iron or 316 Stainless Steel Construction

Coolant Pumps and Tank Units

Gusher coolant pumps include immersed, flange mounted, Rumaco pumps, tank units, and replacements for imported machine tools. Immersed types have 5 configurations to meet you inlet and out let style needs, with single, dual, and stand pipe inlets. Flanged mounted types are best when space is limited and an immersion cannot be used and has both external and internal discharge options.  Rumaco pumps are centrifugal, open impeller type pumps with features such as self-adjusting seals to help installation, throttling without increasing motor load, flange and pipe inlets types, and a wide range of sizes for any application. Tank units are available in 10 to 200 gallons with pumps from 1/25 through 7.5 HP and can be used as permanent, portable, or auxiliary coolant systems.

Ruthman Screw pumps

Screw pumps are best used for cooling lubricants. Screw pumps deliver continuous flow with a low pulsation rate and low noise level. Even with small sizes, screw pumps can have a high flow rate and can handle fluids with low viscosities at high pressures. Screw pumps are also capable of handling abrasives and other solids. There is a vertical and horizontal wet or dry well installation. Case coatings are available.

• Flows up to 160 GPM
• Pressures up to 1750 PSI
• Viscosities from 1 cSt
• Supply pressure 145 PSIG

Nagle Pumps

Nagle specializes in heavy-duty pumps for abrasive, corrosive and high temperature tough to deal with applications.  They develop custom engineered cost effective pump solutions.  They specialize in three configerations, including vertical cantilever, horizontal and submersible slurry centrifugal pumps.  Models Offered:

TWO/CWO/CDO/YWS Vertical Cantilever– designed from 1″ up to 16″ discharge to handle up to 10,000 GPM. Designed to handle slurries and molten salts and metals up to 1500° F.

FCH/FDV-H/KCR Horizontal– designed from 1″ up to 12″ discharge to handle up to 8,000 GPM.  Designed to handle slurries with solids in a large passage impeller and tolerate a wide range of abrasive and corrosive applications.

SMR/SML/SMV Submersible Slurry– desgined from 1″ up to 12″ discharge to handle up to 6,000 GPM.  Designed to handle slurries with up to 70% solids.

Deming® Vertical Turbine Pumps

Suitable for everything from rain water to hazardous, abrasive, and viscous fluids, the NSF-certified Deming Vertical Turbine Pump can be custom-designed in a wide range of capacities and pressures to match your requirements. By selecting from a large number of design options, our experienced engineers can tailor a pump to best suit your application. These pumps have solved fluid transfer challenges in a broad range of industries, including steel, metal finishing, chemical, paper, municipal, petroleum, and agriculture.
