Graco

Piston Pumps

Graco has several types of Piston pumps, electric, pneumatic, and hydraulic operated, including their non-sanitary and sanitary versions.  Sanitary piston pumps are ideal for most food-related, cosmetic and personal care applications. Graco industrial or ink Piston pumps are ideal for inks, lubricants, paint and more. Graco has several Piston pump arrangements, whether it needs to be used indoors or outdoors, hung on a wall or put into the drum, there is the correct configuration to fit any application.  Find the right pump for your specific needs.

• Flows up to 70 GPM
• Pressures up to 5,000 PSI

QUANTM Electric Double Diaphragm Pump

Graco’s QUANTM Electric Double Diaphragm Pump Series was designed with a focus on minimizing energy consumption by cutting energy usage and costs up to 80%. The revolutionary new Fluxcore motors and drives, used for the QUANTM Series, provide up to 8X more continuous torque at low speeds while minimizing size and resistance loses. Easy to clean and simple to maintain, and requiring less energy to operate, the QUANTM Pump Series provides the operator with strong economic savings over the pump’s lifespan.

Advantages:

• Quieter operation and smaller footprint enable easier installation and service—the design can pay for itself in energy savings in under a year
• Efficient, affordable drop-in replacement to reduce energy costs up to 80% being competitively priced vs. AODD pump technologies
• Only electric diaphragm pump that stalls under pressure, eliminating the need for pressure sensors and additional controls to prevent pump failures and reduce downtime
• Integrated I/O allows for remote operation and speed control to minimize operator oversight
• Smart control technology adjusts pump speed to aid in priming or prevent dry running cavitation that damages pumps
• Configure pumps with multiple material offerings for manifolds, seats, balls, and diaphragms

Sanitary Pail, Drum and Tote Unloaders

Graco offers many configurations of Pail, Drum and Tote evacuation systems for the industrial and sanitary markets.  From all FDA sanitary packages to unloading grease or paint, there is a configuration using the many Piston pump or Air Operated Double Diaphragm pump offerings from Graco that will meet your application.

Saniforce Drum Unloader Systems– ideal for evacuating from 55-gallon drums with evacuation rates of 99%.  These utilize sanitary flange clamps for quick disassembly and liner guards to prevent bags form entering pumps.  The ability to piston pumps or air operated diaphragm pumps allow ultimate flexibility.

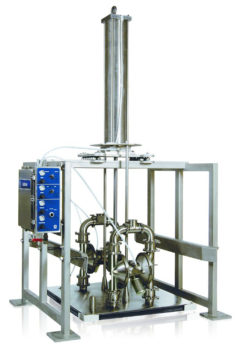

Saniforce Bin Evacuation Systems– ideal for evacuating from 300-gallon containers without dilution of product and the ability to use up to four pumps to increase flow rates.  These are designed with inflatable wiper seals and a unique floating ram plate to increase efficiency and make faster change-out of bins.

Industrial Supply Systems- ideal for evacuating from 16-gallon pails or 55-gallon drums with reliable delivery of one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems.

• Graco D200 – For high-volume in-plant applications
• Graco D200s – For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
• Graco L20c – A lightweight, elevator ram on a cart
• Graco S20 – For low-volume applications of medium to high-viscosity materials
• Graco S20c – Same as the S20, but includes a cart
• Graco D60 – Provides higher down-force and 60-liter pail capacity

Peristaltic Pumps

Graco Peristaltic Hose Pumps are ideal for Industrial metering and transfer. Graco’s SoloTech hose pump design utilizes a single roller that compresses the engineered hose through a full 360 degrees of rotation. This innovative design means longer hose life when pumping caustic, abrasive or sensitive materials for metering or transfer.  These pumps are inexpensive to maintain because there are no valves, seals or glands.  The pumps are reversible and can be used to empty lines or clear blockage.  With pump sizes up to 1″, numerous material options and suction lifts up to 29 feet, there is a pump to meet many applications.

• Flows up to 16 GPM
• Pressures up to 125 PSI
• Temperatures up to 250° F

Husky Air Operated Double Diaphragm Pumps

Graco offers three series of Air Operated Double Diaphragm (AODD) Pumps: Husky Series, Saniforce Series and ChemSafe Series.  Graco’s three different series of AODD pumps are available in aluminum, polypropylene, conductive polypropylene, pvdf, stainless steel, hastelloy, PTFE, and UHMWPE configurations depending on the series, which include elastomers to meet the chemical compatibility for any application.  Depending on the series, these pumps can pull a suction lift of 31 feet wet or 20 feet dry, handle up to 2.5″ solids and operate at temperatures up to 275° F.  Models Offered:

• Husky Series is offered from 1/4″ up to 3″ models with flows from .24 GPM up to 300 GPM and pressures up to 125 PSI. This is Graco’s standard offering for AODD pumps in industrial applications, such as sump or transfer applications.  Models include 205, 307, 515/716, 1050, 1590, 15120, 2150, 2200 and 3300.
• Saniforce Series is offered from 1″ Tri-Clamp fittings up to 2.5″ Tri-Clamp fittings with flows up to 150 GPM and pressures up to 120 PSI.  With FDA and 3A certifications, these pumps are ideal for the Food and Beverage industry.  Models include 515, 1040, 1590, 2150 and 3150.
• ChemSafe Series is offered from 1/4″ up to 1 1/2″ configurations with flows up to 99.5 GPM and pressures up to 100 PSI, these leak free, CNC machined molded pumps offer corrosion-resistant exterior with no exposed metal.  Ideal applications include chemical transfer or abrasive applications.  Models include 205, 307, 5151, 1040, and 1590.

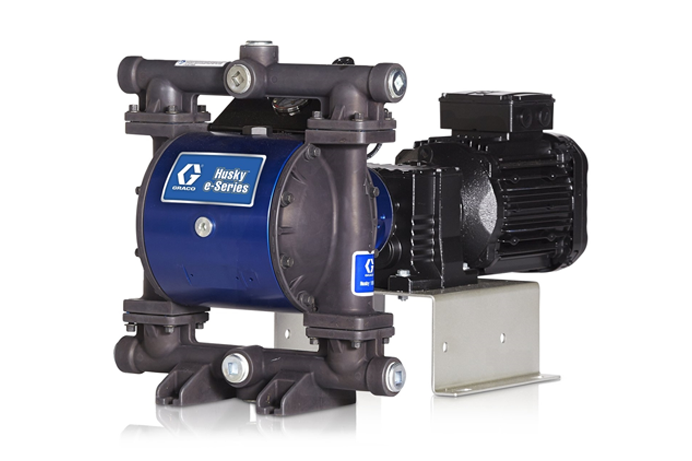

Husky Electric-Operated Double Diaphragm Pumps

Husky EODD Pumps combine all the benefits of traditional air operated diaphragm pumps, such as self priming, stalling under pressure and increased diaphragm life with the benefits of an electric pump, like energy savings, reduced pulsation and increased pump control. Husky EODD pumps can handle slurries and abrasives without damage. The electric drive increases efficiency, lowers operating costs, increases pump control and provides accurate fluid metering. The motor can operate on 120V, 240V or 480V Power and is available in AC or bushless DC. Husky EODD pumps can be configured with multiple material offerings for manifolds, seats, balls and diaphragms.

SaniForce 2.0 Food Grade (FS) and High Sanitation (HS) Air & Husky Electric Double Diaphragm Pumps

Have you considered converting or increasing your product offering to include products such as hand sanitizer and surface disinfectants? The COVID-19 pandemic has increased the demand for these products globally. Graco’s line of SaniForce 2.0 air and Husky Electric Double Diaphragm Pumps are powerful solutions to assist with converting your current processes to sanitizers and disinfectants.  All SaniForce 2.0 pumps benefit from:

Reduced Operating Costs Compared to Competitors: Graco pumps increase your profitability with reduced operating costs. High energy efficiency air and electric motors reduce energy costs. High quality component parts last longer reducing required maintenance.

American Built Quality: Factory-tested and field-proven Graco’s professional transfer equipment is designed, manufactured, and assembled in the USA with global components.

Industry-Leading Service and Support: We have you covered with around-the-clock product support.

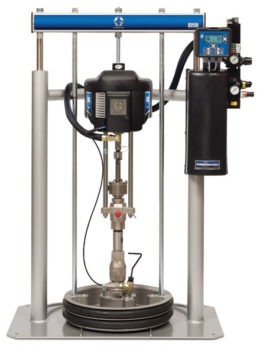

Sealant and Adhesives Equipment

Graco offers multiple different products for sealant and adhesive systems. Graco offers applicators, supply systems, valves, and metering, mixing, dispensing equipment as a part of their extensive offering in sealant and adhesives equipment.  Examples of their supply systems include evacuating from 16-gallon pails or 55-gallon drums with reliable delivery of one-component sealants, adhesives and other medium to high-viscosity materials to metering and dispensing systems.  They offer two part mixing and dispensing systems such as the ExactaBlend AGP, which takes two different materials out of drums or pails and mixes them to the correct to ratio, which then can be fed through a gun and onto your piece of work.  Graco has a sealant and adhesive package to fit any of your needs.

Finishing Equipment

Graco offers a complete line of Finishing equipment for any industry.  Products include Spray guns, accessories, plural component mix systems, pumps and complete spray packages.  Examples of Graco finishing pumps include the Dura-Flo, Xtreme, President and Monark series that offer flows and pressures for numerous applications.  Examples of complete spray packages include the Merker air-assist and airless package or the Triton pump packages.  With a vast range of offerings, Graco has a finishing package to complete any job.

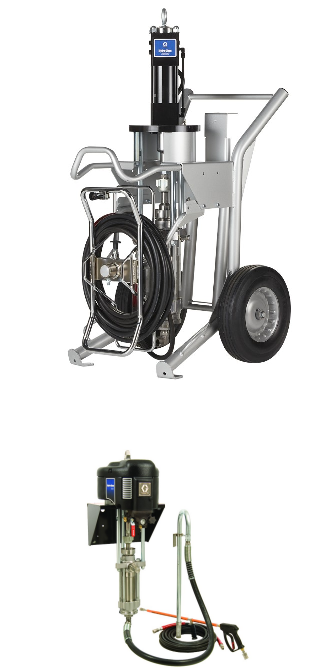

Cleaning Packages

Graco’s pressure washer and cleaning packages include the Hydra-Clean Air-Operated Pressure Washers and the Hydra-Clean Hydraulic Pressure Washers.  The durable Hydra-Clean pressure washers are available as cart-mount or wall-mount units and can clean the toughest environments like oil rigs, shipyards, mining, agriculture and construction equipment or food and beverage facilities.  Hydra-Clean pressure washers also carries a safety benefit because there’s no risk of sparking, unlike gas or electric pressure washers. The fluid section contains stainless steel wetted parts and can handle the most aggressive cleaning materials.  Graco’s Hydra-Clean pressure washers are a quick, easy and efficient method to clean up in your toughest environments.

• Flows up to 18 GPM
• Pressures up to 4,300 PSI
• Temperatures up to 200° F
